Specification
Arksen vessels are all designed and built to allow owners to explore the globe, with the confidence, comfort, independence and efficiency expected of a serious, modern, long-range cruising yacht. Robustness, reliability and efficiency are they key elements considered in every aspect of the Arksen 65’s journey, from drawing board to handover, with redundancy in all critical systems and care taken to ensure accessibility and serviceability at sea.
Starting price
Price on request
Length overall
21.3 m (69' 11")
Beam overall
5.3m (17'5")
Draft
1.17 m (3'8")
Range
3,700 nm
Structural Specifications
Draft
1.17 m (3'8")
Air Draft
5.30 m (17'5")
Design Displacement
31.5 t
Fuel Capacity
10,250 litres (2,707 U.S. gallons)
Fresh Water Capacity
1,500 litres (396 U.S. gallons)

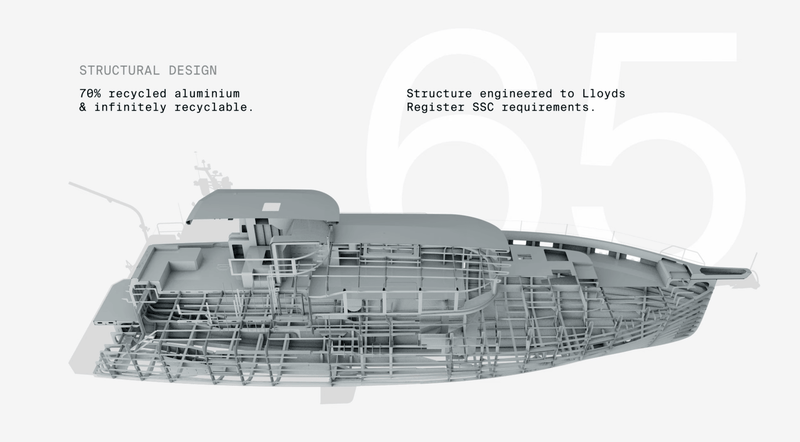

Structural Design
Lloyds SSC Rules
Commercial Coding
Optional, MCA Category 2 or Category 0
Range & Efficiency
Performance
With the 3700 nautical mile range at cruising speed, plus the ability to take a transatlantic or pacific voyage, the Arksen 65 makes exploring the globe more accessible in a vessel of this size.
Cruising Speed
8 knots
Range
3,700 nm

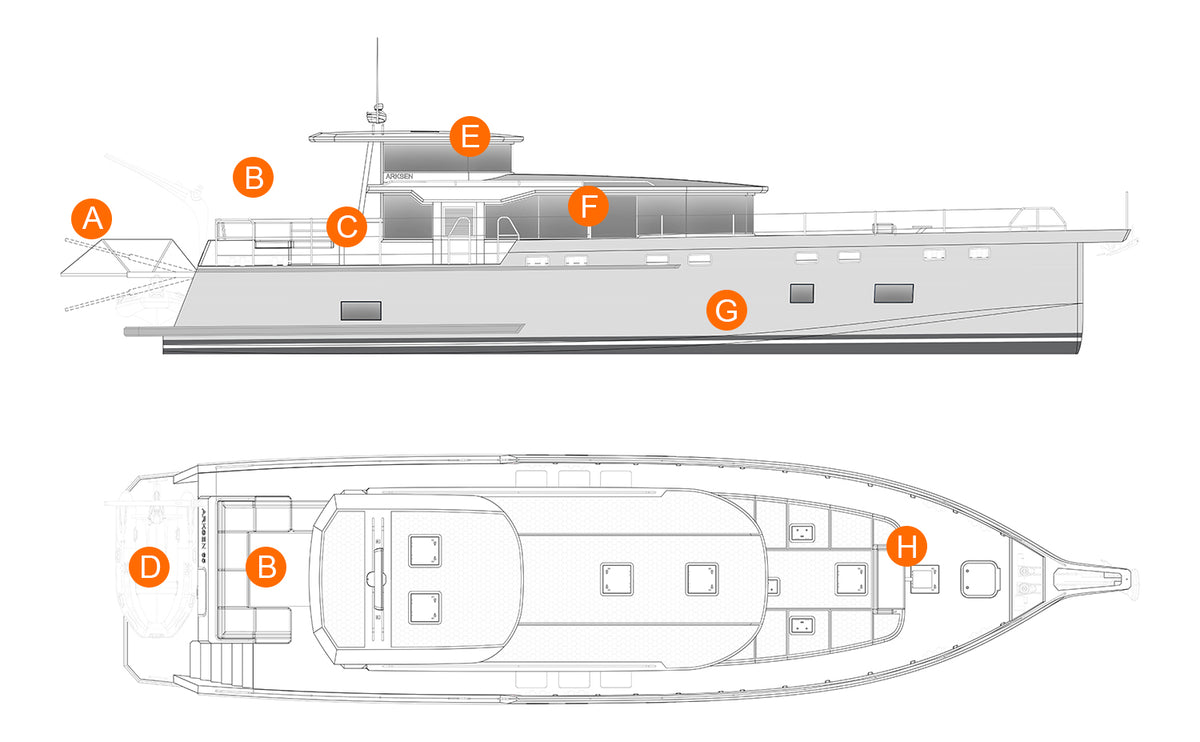

Equipment
(A) Pasarelle
Articulating pasarelle for easy access aft
(B) Aft seating
Ample aft deck seating and dining space shown with seat infill and table folded out. A clear aft deck version is also available.
(C) Aft BBQ
Aft BBQ and kitchen unit
(D) Tender storage
Tenders up to 3.4m can be stowed on or above the bathing platform or also on the aft deck with the clear deck option.
(E) Helm options
The exterior helm position for the Arksen 65 is now available in both open and enclosed options to offer the best protection for your preferred cruising.
(F) Handrails
Ergonomically placed handrails along the coach roof for safe access to the forward deck.
(G) Aluminium
Aluminium used in building the Arksen 65 contains up to 75% recycled content.

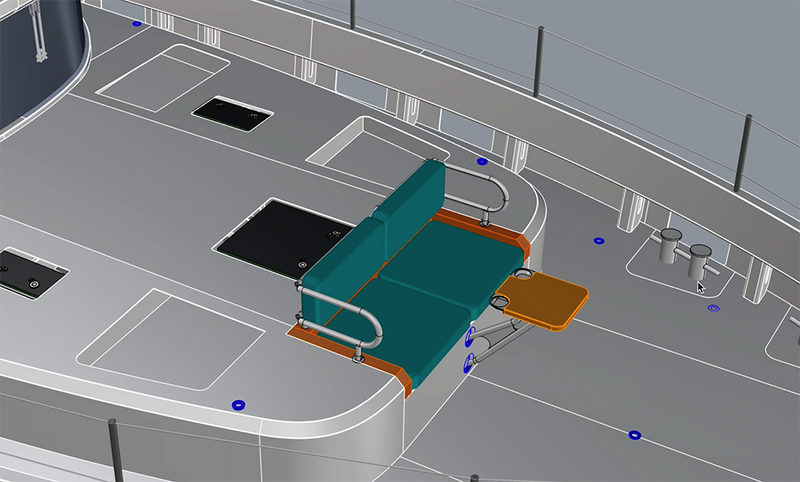

(H) Forward seating
Flexible forward seating options to accommodate a forward facing sofa with solar panels or can be fitted out as a full sun pad or additional toy storage area.

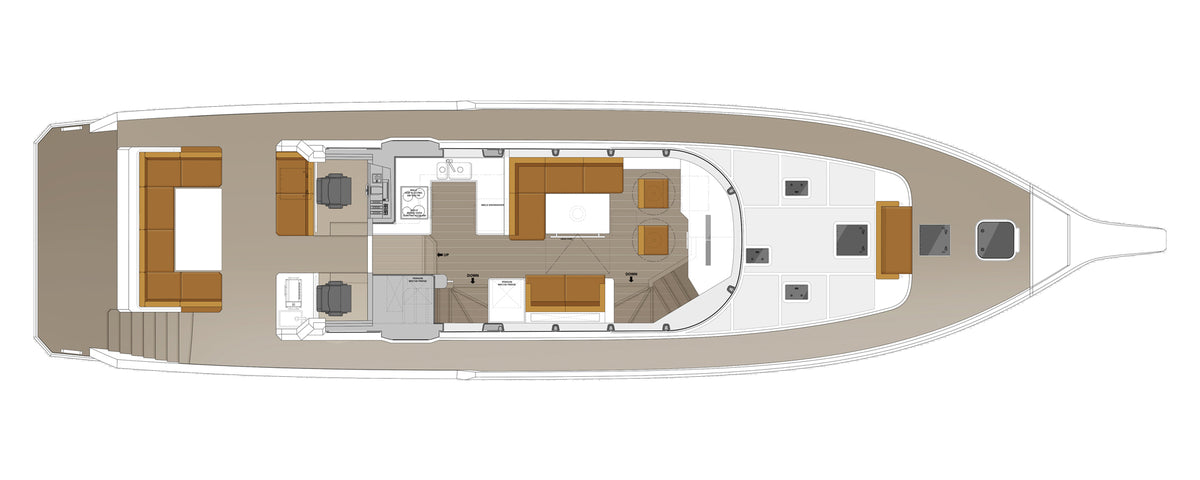

Layout Options
As we know that no two Arksen owners are the same, our explorer vessel comes with a variety of layouts and packages to suit all dream destinations. The Arksen 65 has accommodation for 4 - 6 people.
Exterior Helm Stations
The option for wrap around glazing incorporates two large sliding side windows for ventilation.
Aft Seating
Expansive aft deck seating for entertaining complete with aft facing sofa and seat infil to allow up to 8 guests to sit comfortably around the double leaf table. In addition to the interior third cabin storage room layout, the aft deck can optionally be kept clear of any seating to allow for additional watersports and underwater equipment.

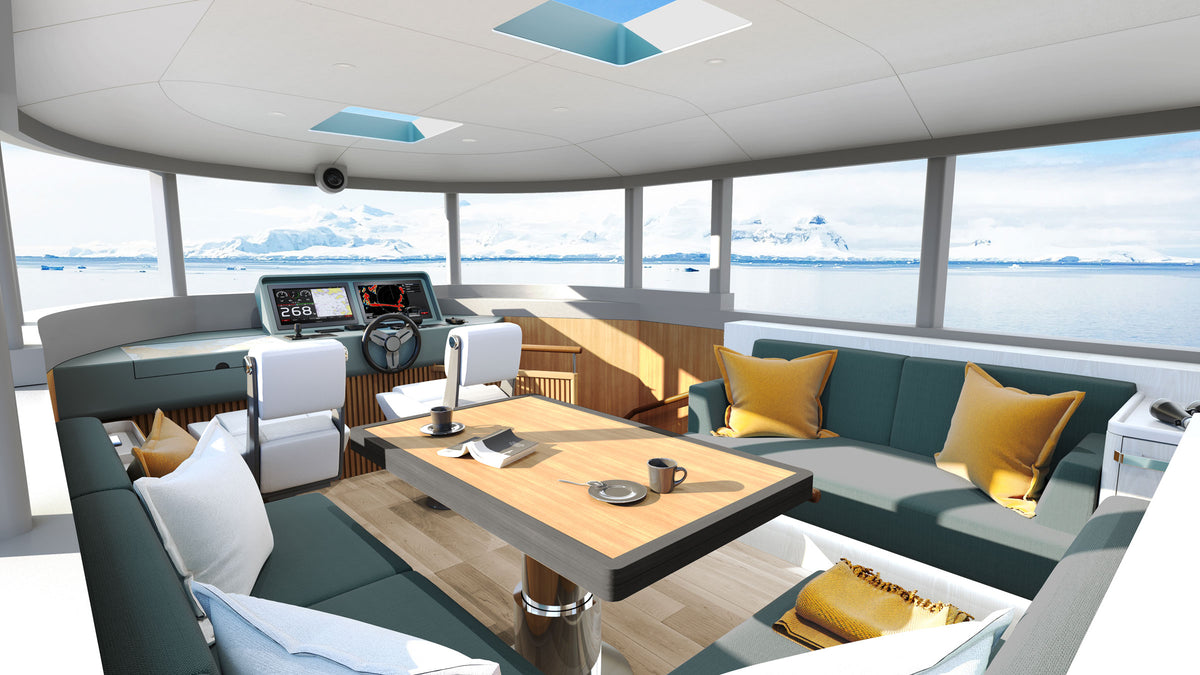

Saloon
Open plan saloon and galley area provides a sociable seating and dining space with wrap around windows for panoramic views of your destination. Complete with interior helm station this layout provides company for those on watch and is a wonderful light and airy entertaining space.

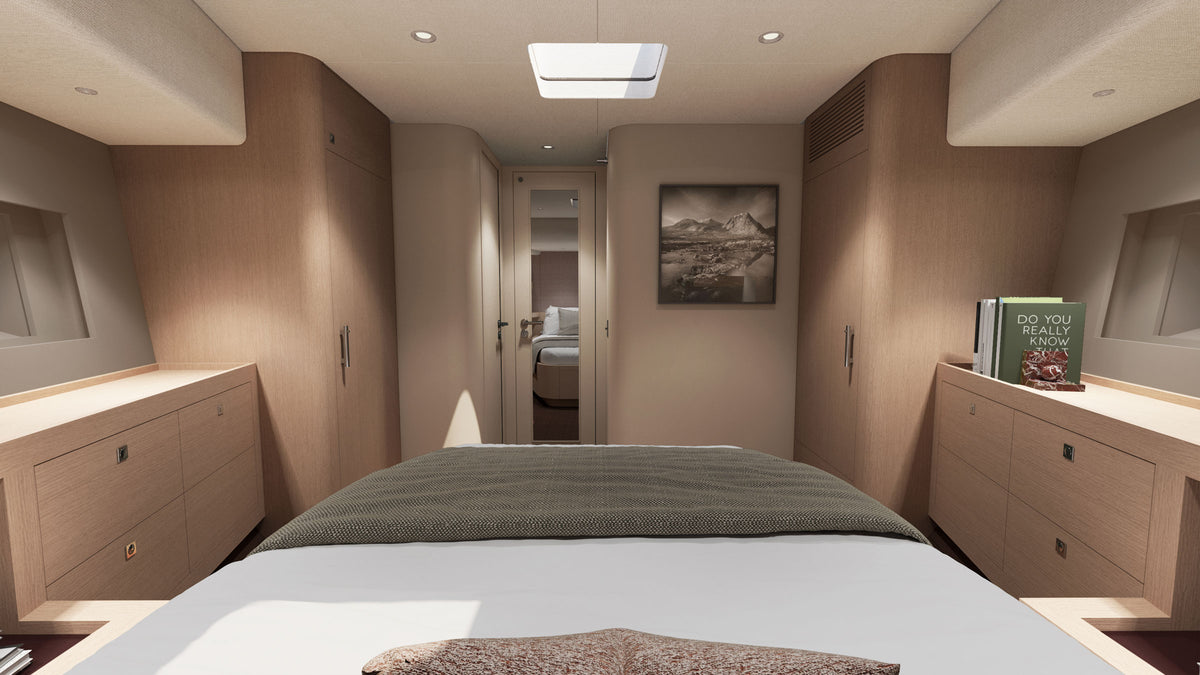

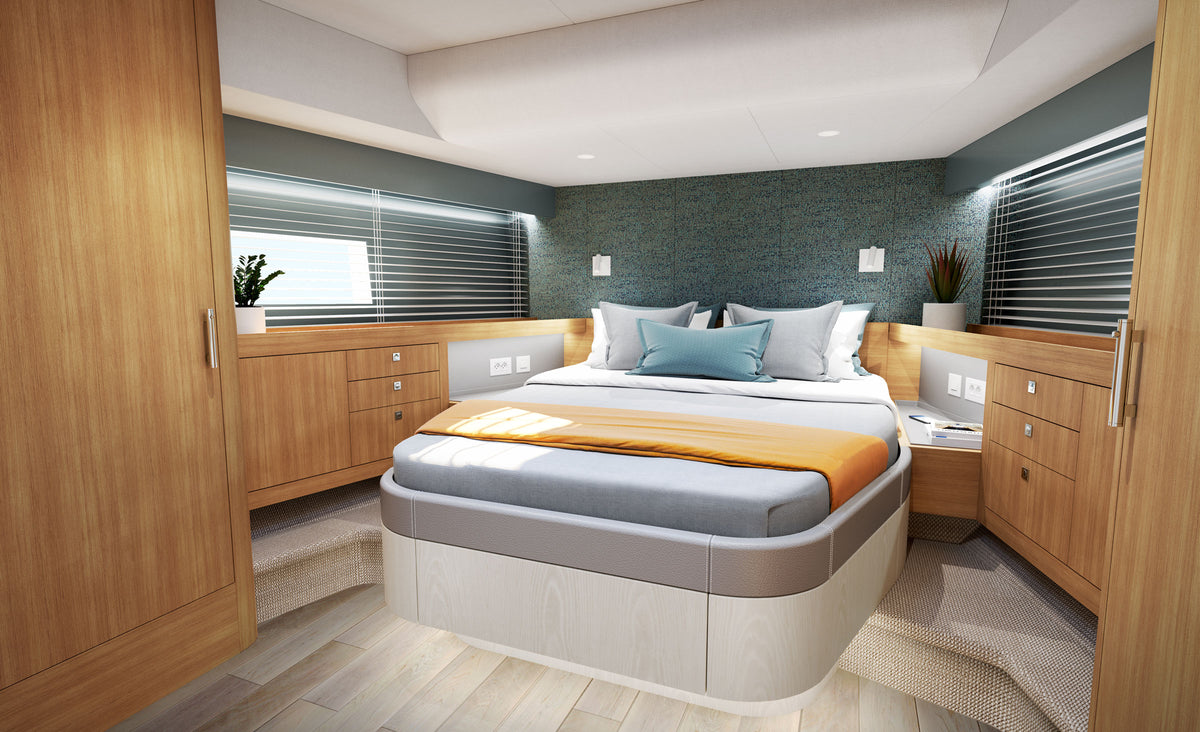

Master Cabin
The large windows pour light into the space, complete with queen size island bed, the master cabin creates the perfect retreat after an adventurous day on the water.

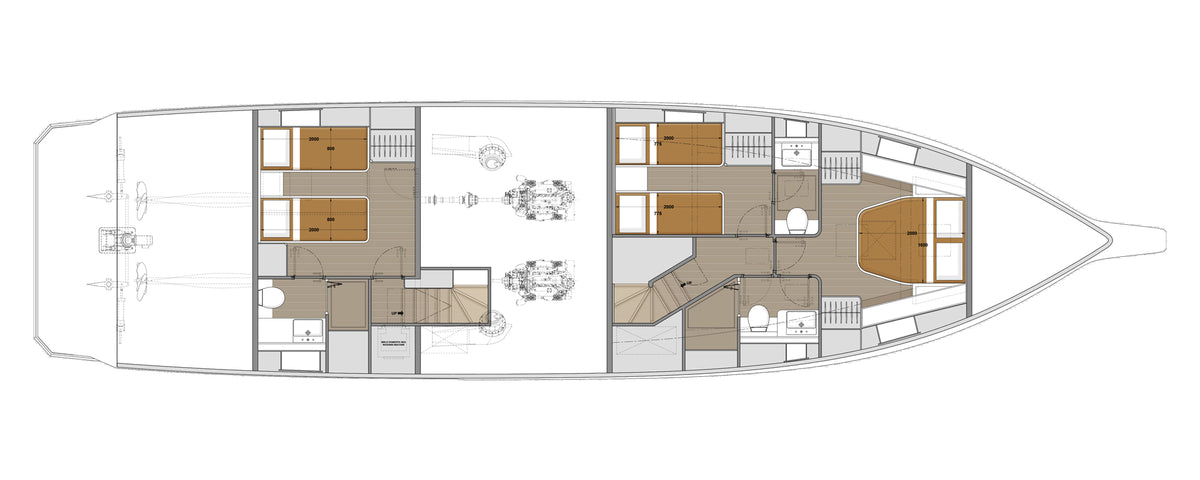

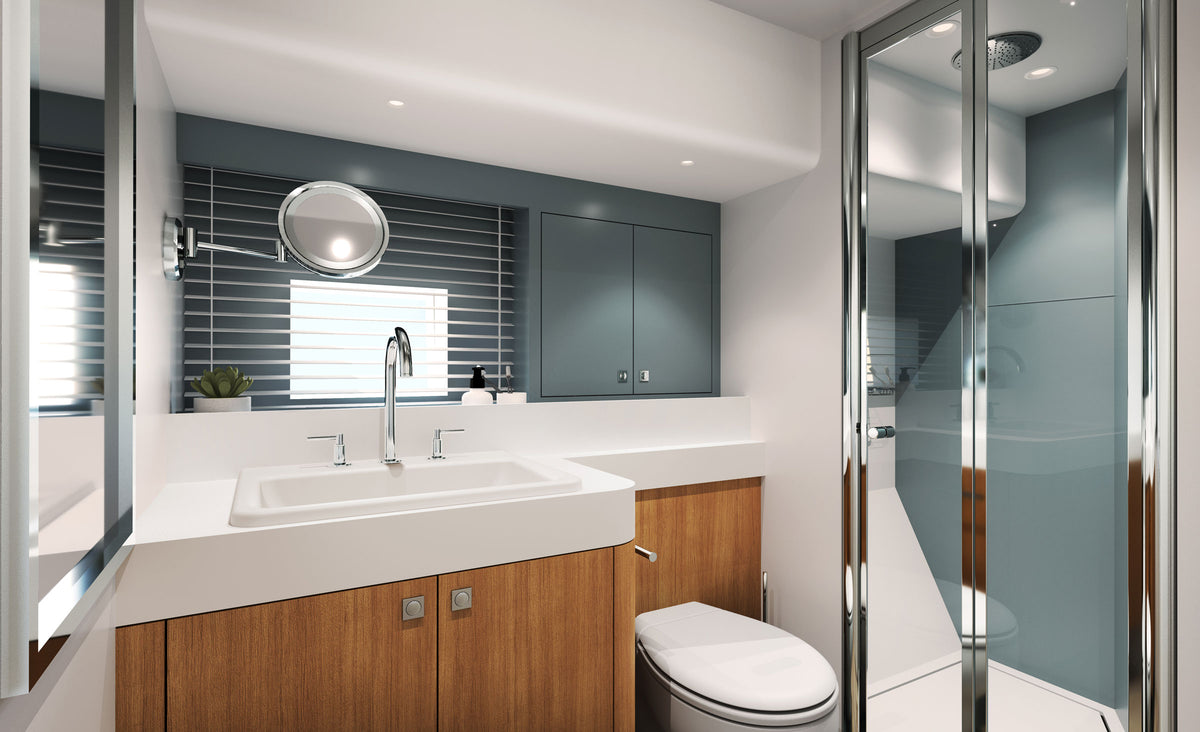

The Arksen 65 standard layout encompasses three en-suites, one with Jack and Jill doors to use as a day head.
Guest Cabins
The forward twin guest cabin can be altered to become the master snug, study, workshop or as a lower deck galley.
With the aft guest cabin as a convertible double or twin layout. All cabins complete with ensuite.

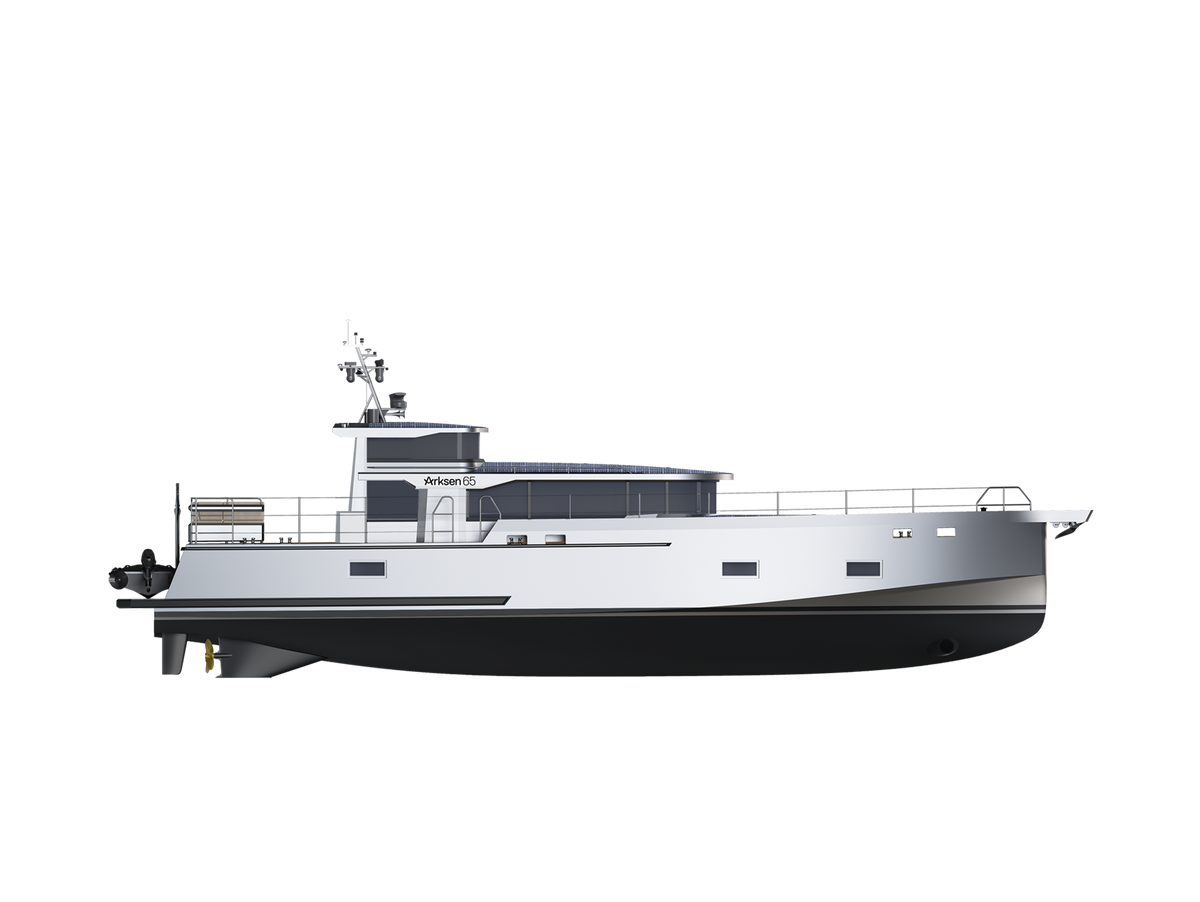

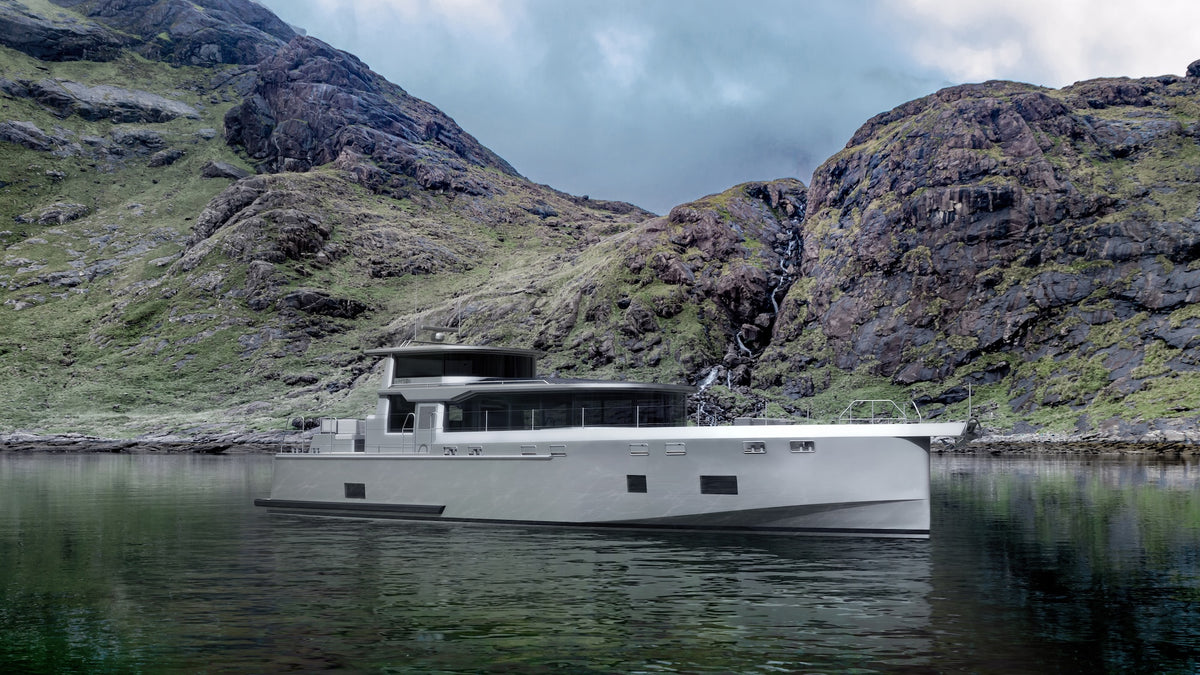

Exterior
The striking exterior styling of the Arksen 65 was created by Humphreys Yacht Design. Finished in bare aluminium as standard, the hull and superstructure can optionally be painted or wrapped to suit personal requirements.
The selection of a super efficient Modeshift® hullform by Humphreys Yacht Design coupled with complex curvature on the hull has resulted in lower resistance and lower power requirement at long distance cruising speeds. This delivers optimum efficiency while also providing excellent seakeeping to maintain stability.
Naval Architect & Exterior Design
Decking
All deck areas are fitted with a nitrile rubber non-slip deck covering. Covering will provide sufficient grip underfoot, in a wide range of conditions, whilst being comfortable to sit or kneel on, or to walk on with bare feet. Optionally, various decking alternatives are available, such as Tesumo; a more sustainable real-wood alternative to Teak, and Esthec ,a synthetic decking material, available in a wide varierty of colours and patterns.
Coatings
The hull below waterline is primed and antifouled with Intersleek. Propellers and shafts exposed below waterline are coated with Propspeed. The hull above waterline and the superstructure are bare sanded aluminium, with visible welds. This gives a robust, purposeful look with minimal maintenance requirement.
Optionally, some of the welding can be sanded-flush, for a more consistent finish. A variety of other optional finishes are also available, such as clearcoat, painted, faired & painted and vinyl wrapped.
Interior Design
In an industry often marked by uniformity, the Arksen 65 offers refreshing take with enriching spaces fitted out to high specifications of interior design.
Attention has been paid to delivering luxurious five-star living accommodation, with the scope to create zonal areas that offer a uniquely different ambiance in each location.
Interior Designer
Berths / cabins
Four to six berths in two or three cabin layout.
All aspects of interior take into consideration safety at sea and the ease of maintenance and cleaning. All fixtures and fittings are of an attractive yet durable standard, suitable for a marine environment.
