Specification
Rugged, adaptable and geared for active use,the Arksen 55 is built to support a self-driven, experience-led lifestyle. Every element, from bow ramp to equipment rack, is designed for autonomy. This is a vessel for those who move with purpose, prepared for the elements, open to experience and ready to go where others cannot.
First Editions Price
£2,600,000 fully specified
Overall Length
17.3 m (56’ 8”)
Beam Overall
4.7 m (15' 5")
Target Range (speed)
350 nm at 25-30 kts
Sprint Speed
50 kts at light load
Lightship Displacement
21 T (46,300 lb)
Fuel Tank Capacity
3200 litres (845 U.S. gallons)
Freshwater Tank Capacity
60 litres (66 U.S. gallons)
Design category
ISO Category B
Construction
Hull, deck, superstructure and roof in marine-grade aluminium
Engine Options
4 x Yamaha F450 XTO (OB)- Standard
3 xMercury V12 600 (OB)
3 x Volvo Penta (IB)
First Editions
To celebrate the launch of the Arksen 55 the first few vessels will be built in a special first editions specification. Providing all the equipment needed for your next greatest adventure. Other specifications can be ordered from 2027 onwards.
General Arrangement
Front Cockpit:
Front facing upholstered bench lounge area
Sunbed
Bow ramp
Aft Platform:
Swim platform
Forward Cabin:
1 cabin with king bed and ensuite
Aft Cabin:

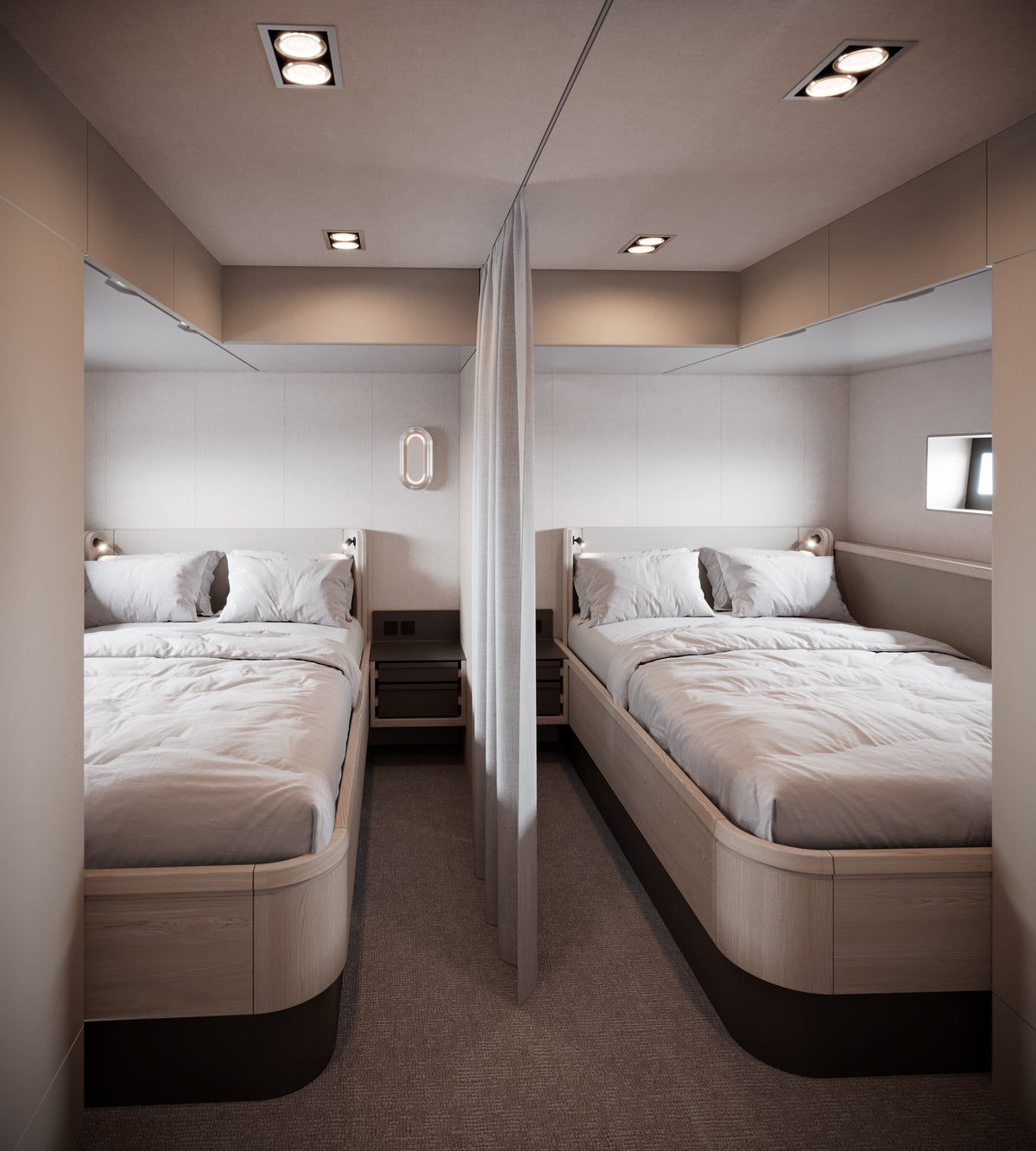

1 cabin with two single beds
Roof:
Smaller electric skylight (hinged)
Helm Seats
x3 Custom made Helm seat adjustable
Black Water Tank
Dockside pump out
Seacock for overboard discharge
HVAC
AC up 60,000BTU/h with chiller and air handling units.
Heating: Diesel heater.
Bow Thruster
120 kgf thrust
Windlass
At bow, and stern. Including a seawater washdown.
Anchor
Bow anchor 25kg with 50m chain
Stern anchor 16kg with 5m chain + rope
Fridge
In galley
In pilot house if galley down

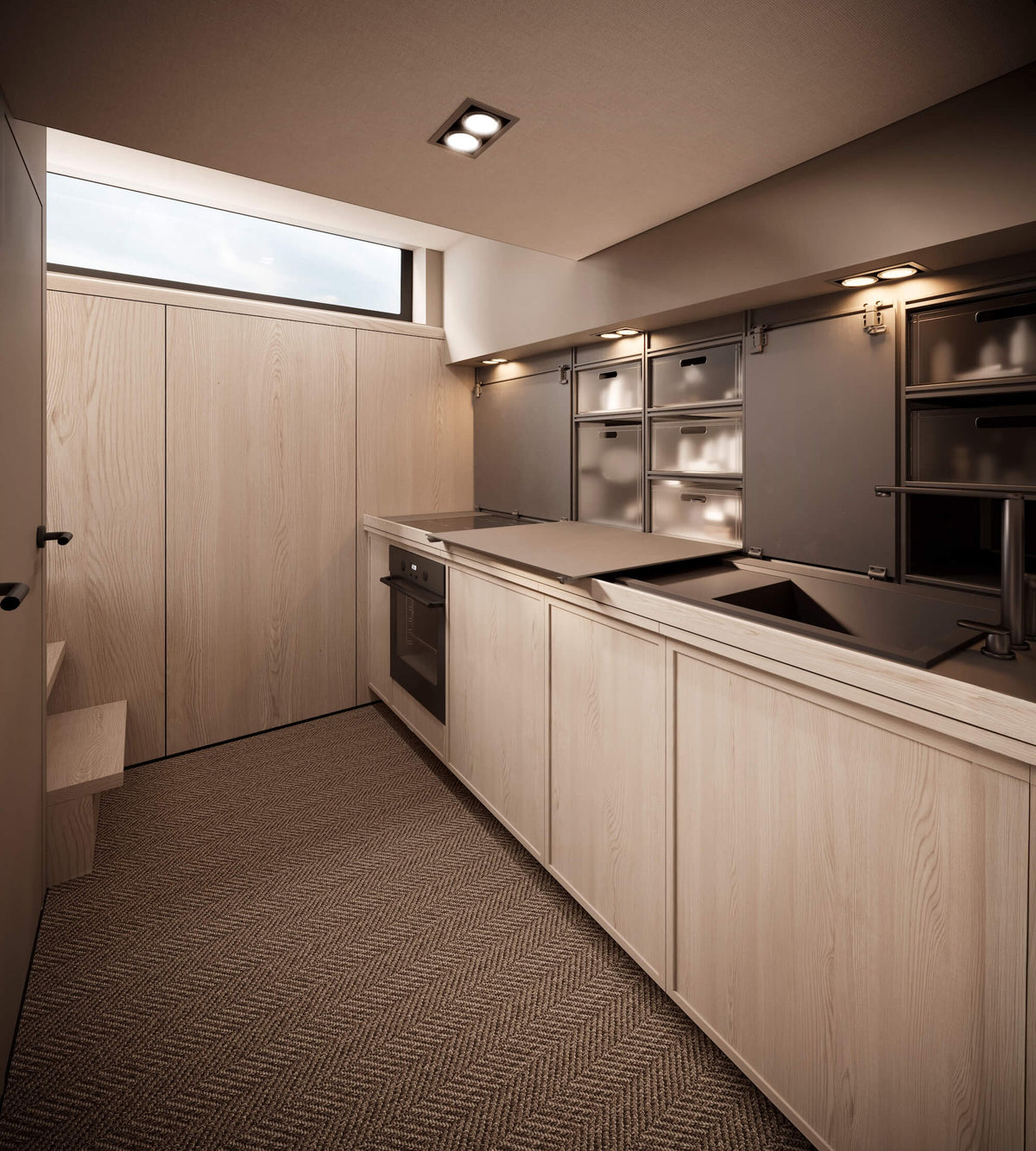

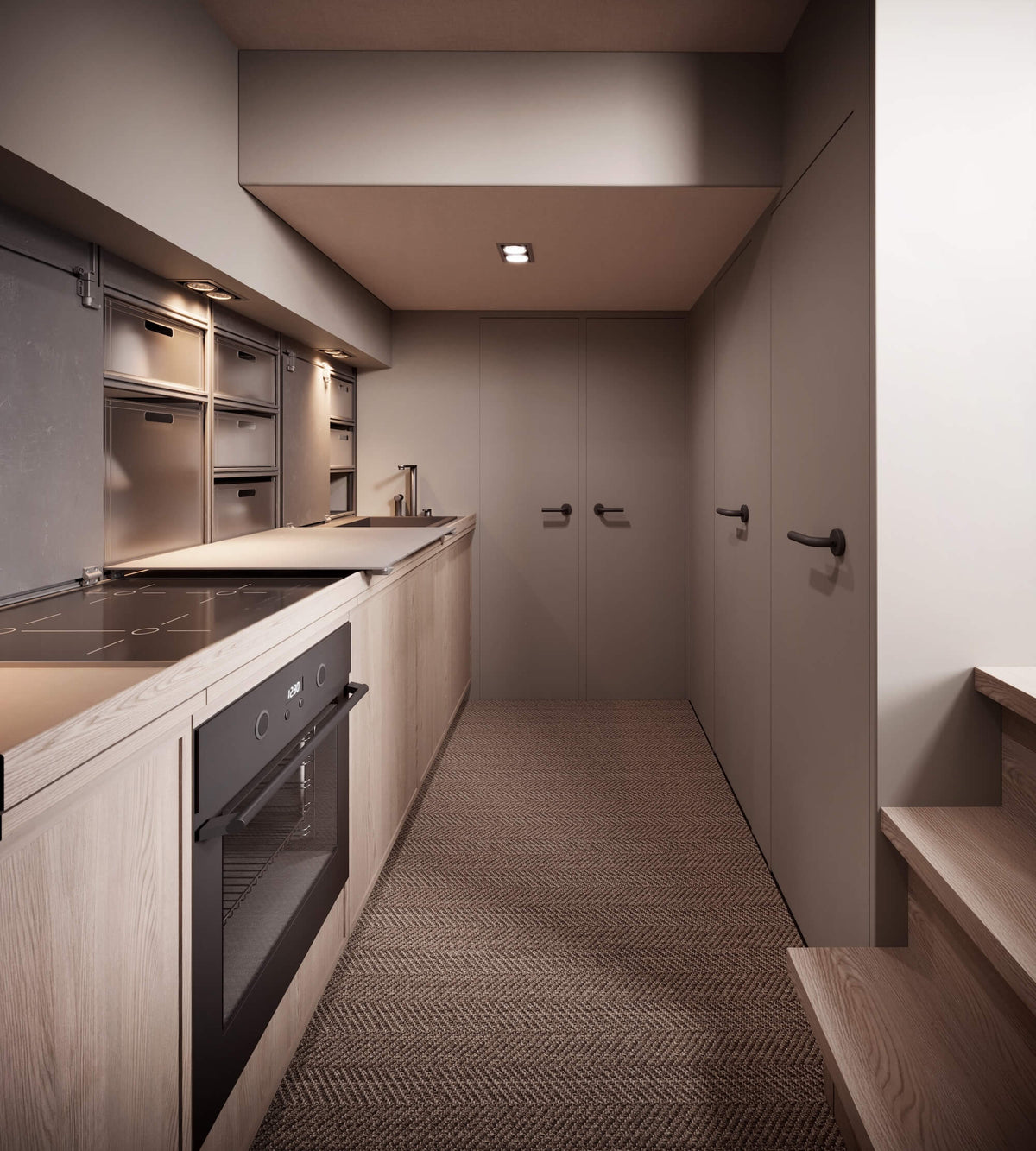

Home Appliances
Induction 2 burner cooktop, Miele
Oven / Microwave, Miele
Hood, Miele
2 x Refrigerator 90L
Audio
On lower deck front cabin:
1x Control unit
2x Speakers
On lower deck aft cabin:
1x Control unit
2x Speakers
On main deck saloon:
1x Control unit
6x Speakers
On main dashboard:
1x Control unit via Garmin interface
Electronics
3x Garmin 16" GPSMAP chart plotter display
1x Garmin VHF
Control switch panel
Bow thruster control panel
Windlass control
Decking Material
Synthetic decking
Boarding
Boarding gates on bulwark both sides
Manual gangway to assist boarding from sides or bow
Boarding ladder & Swim ladder

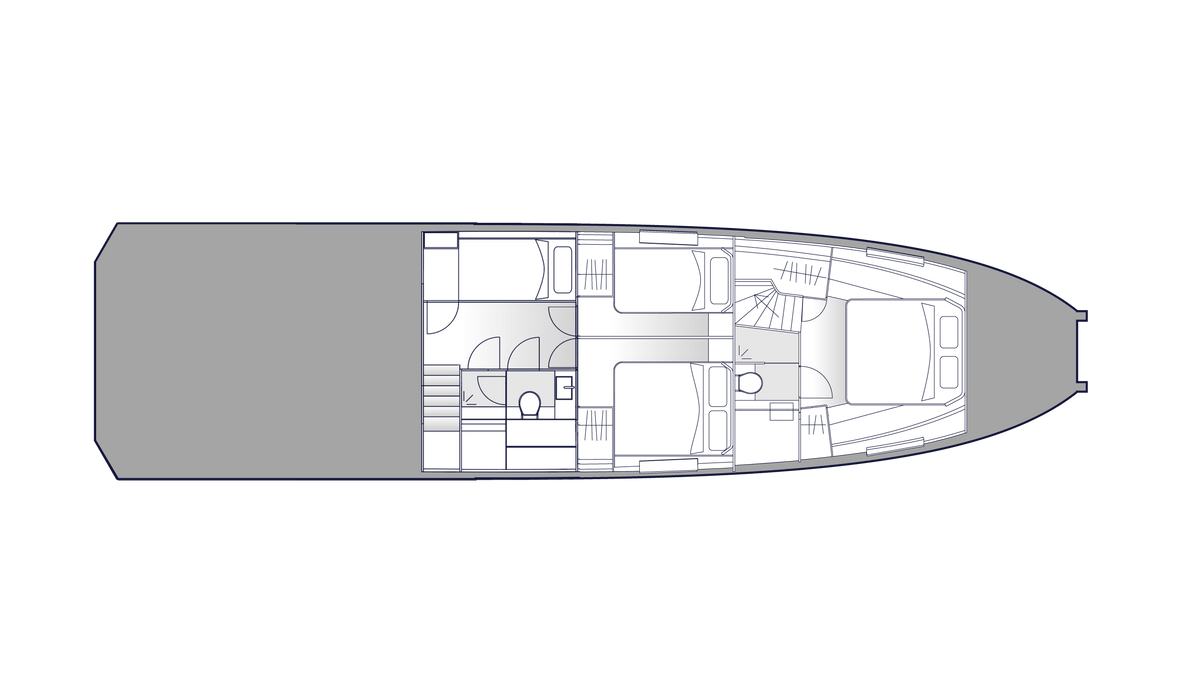

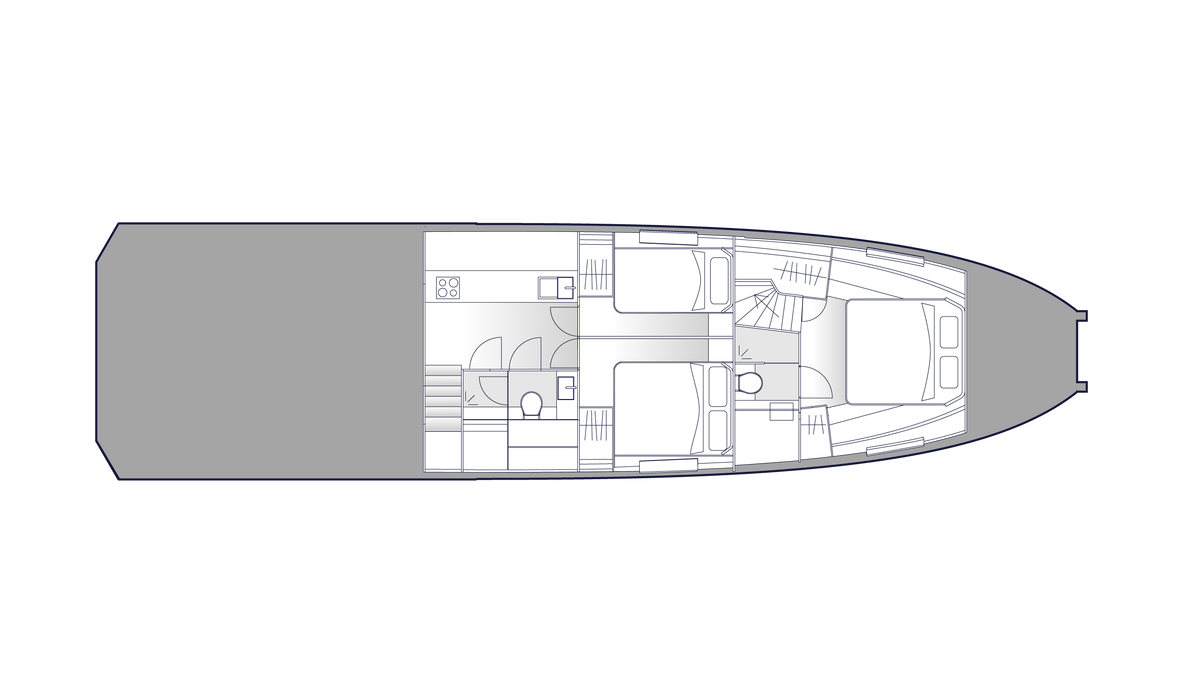

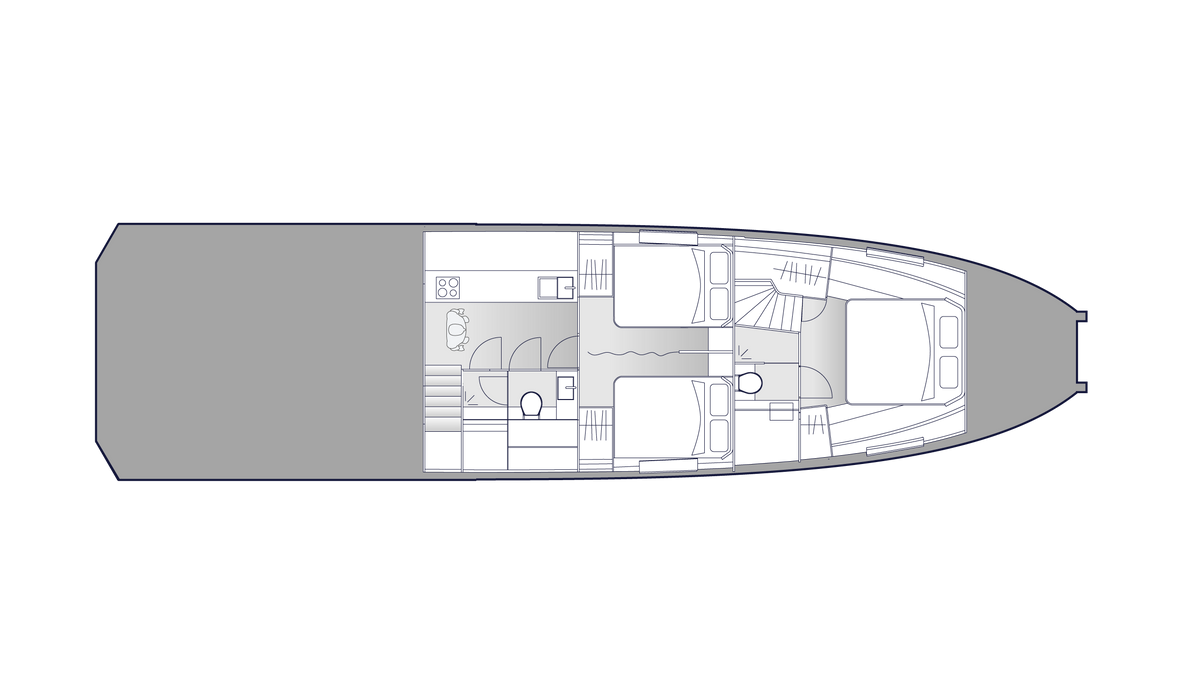

General Arrangement

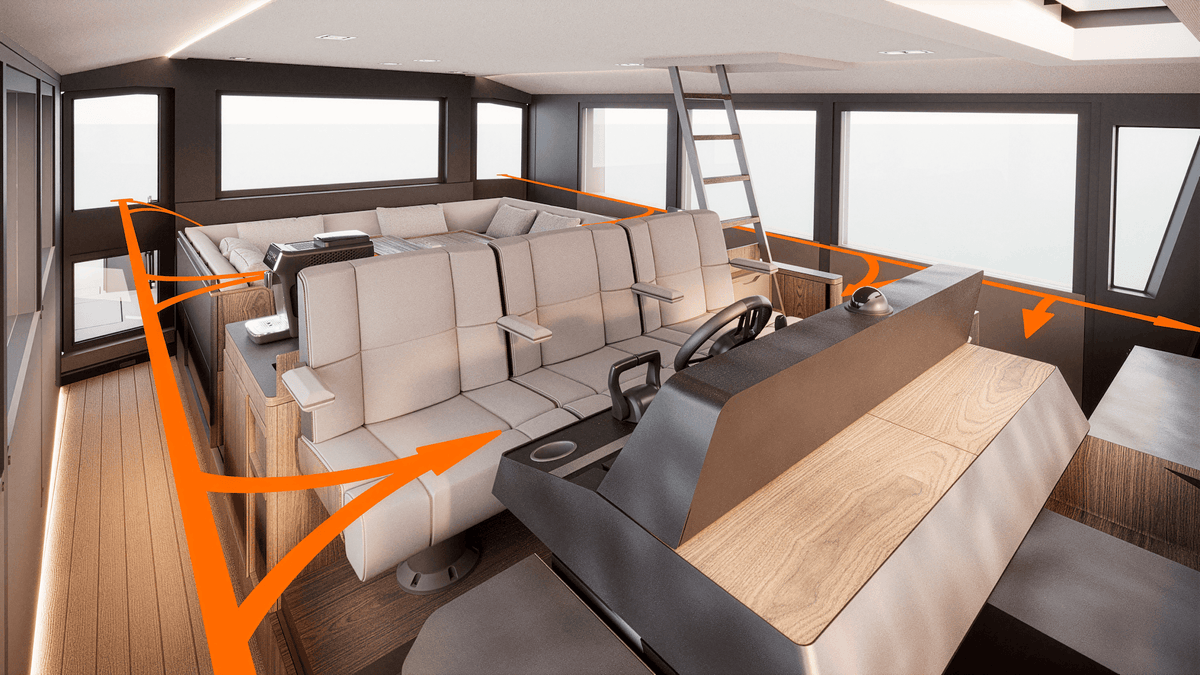

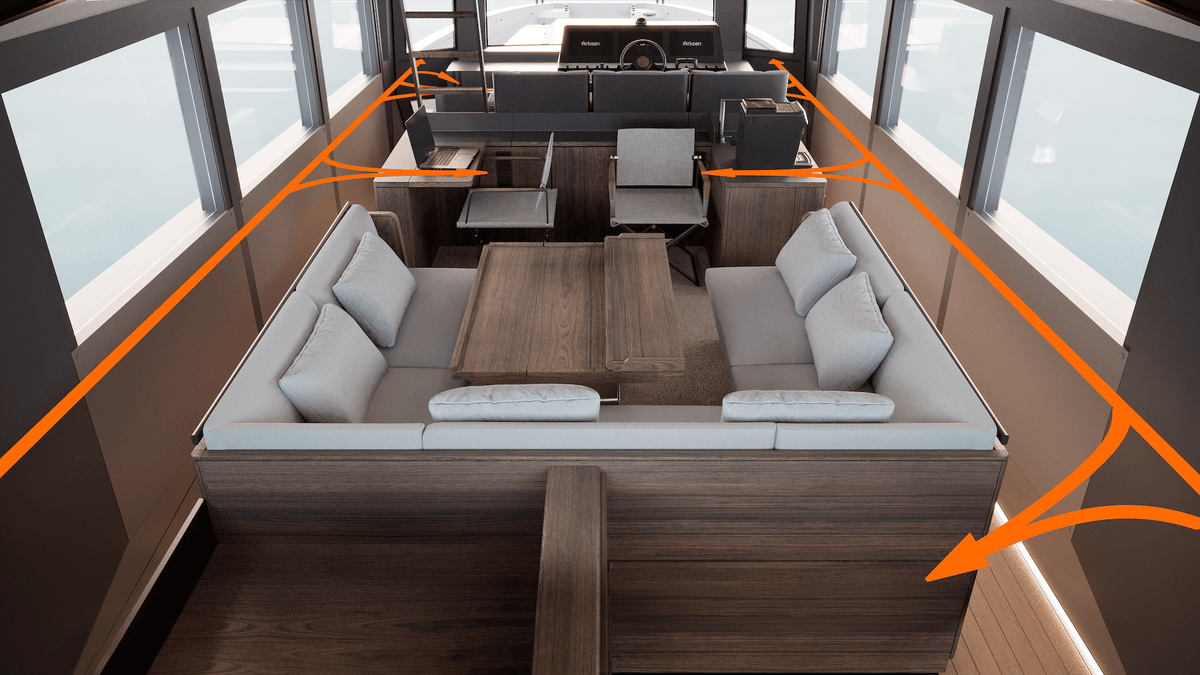

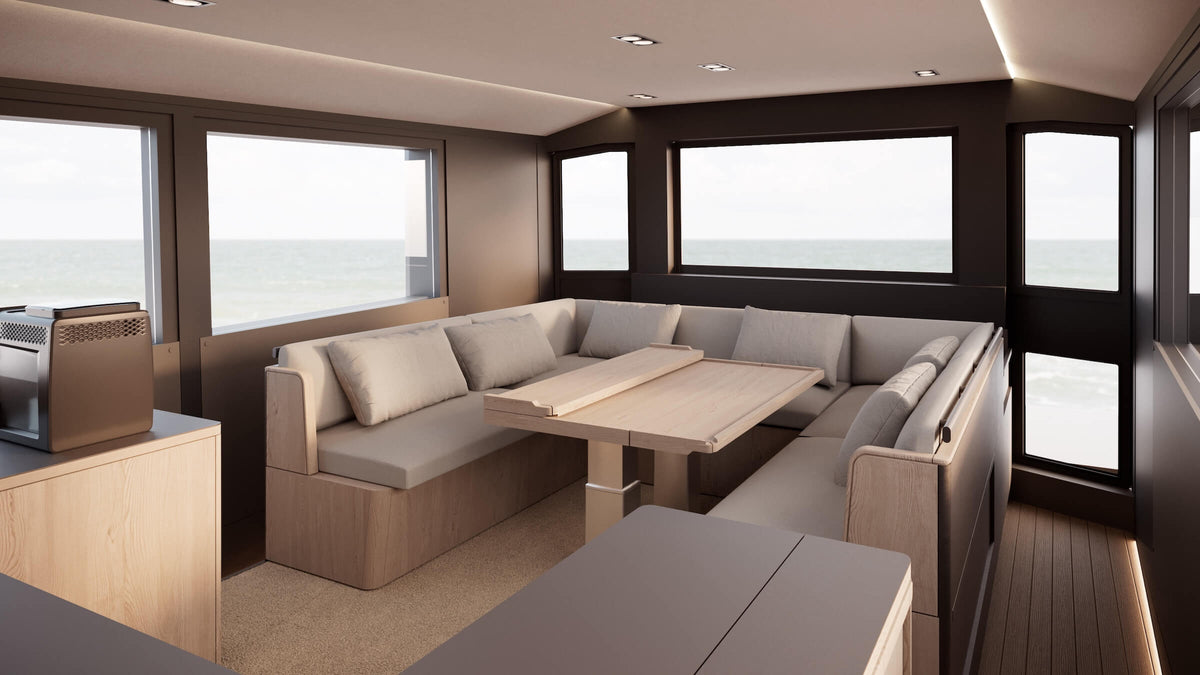

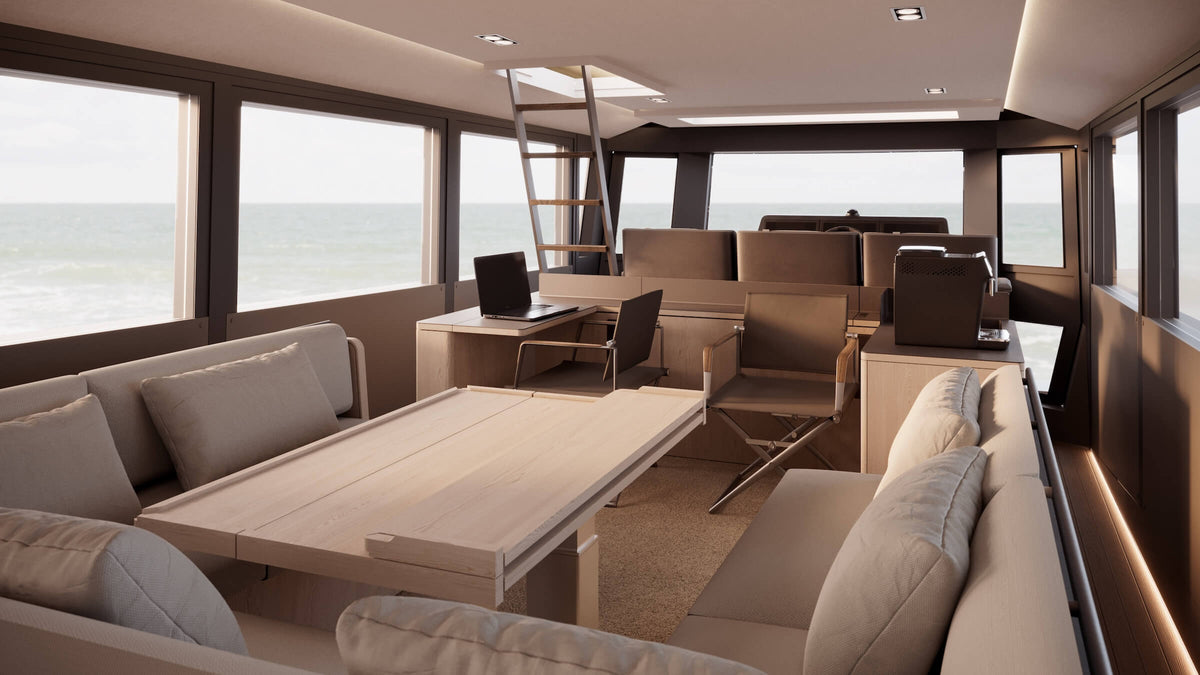

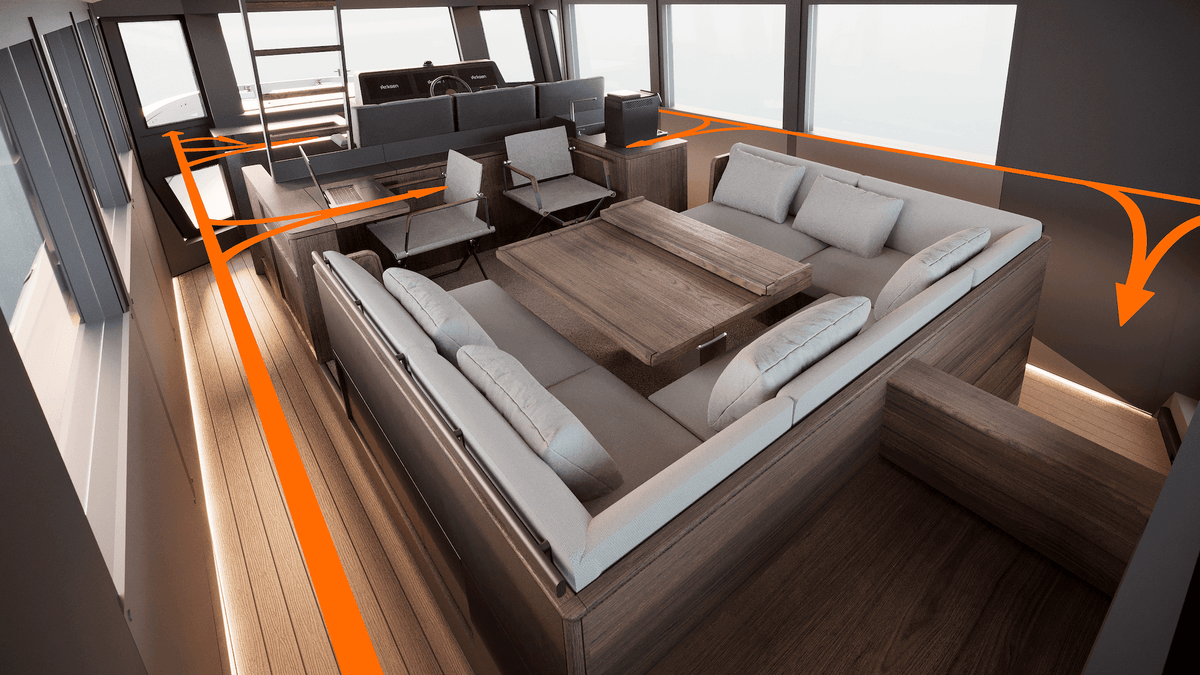

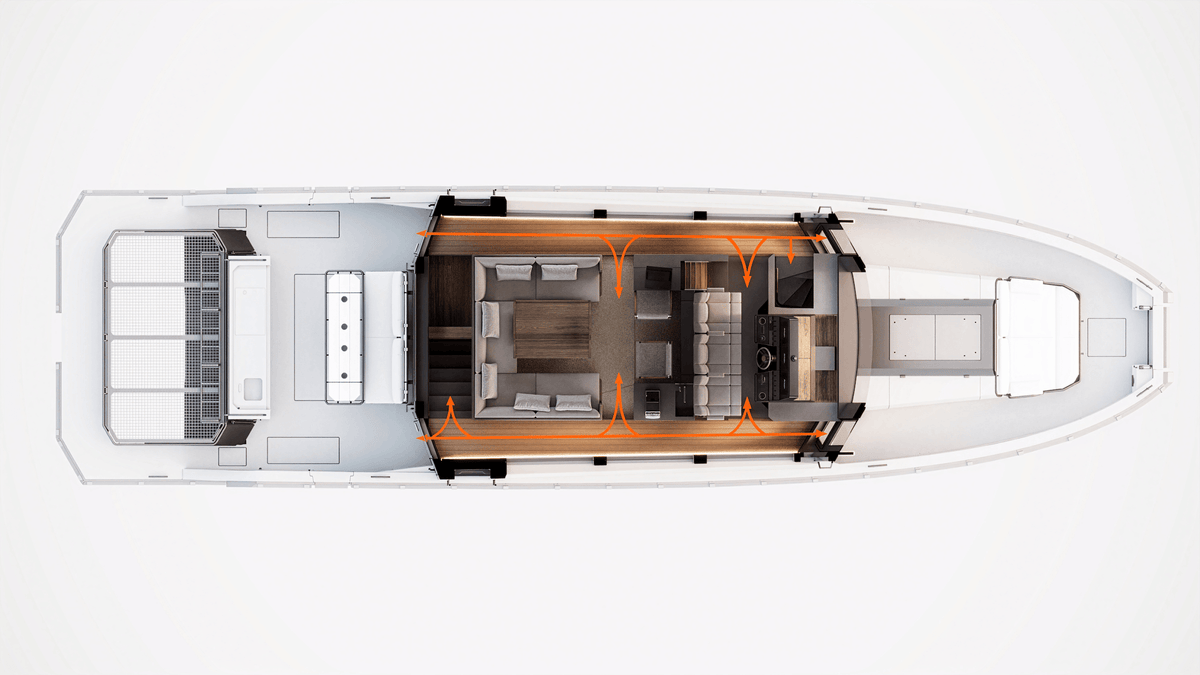

The defining feature of the general arrangement is the full-beam pilothouse, which brings both navigation and dining onto the main deck. The saloon connects seamlessly with the outdoors and raised seating keeps your view on the horizon.

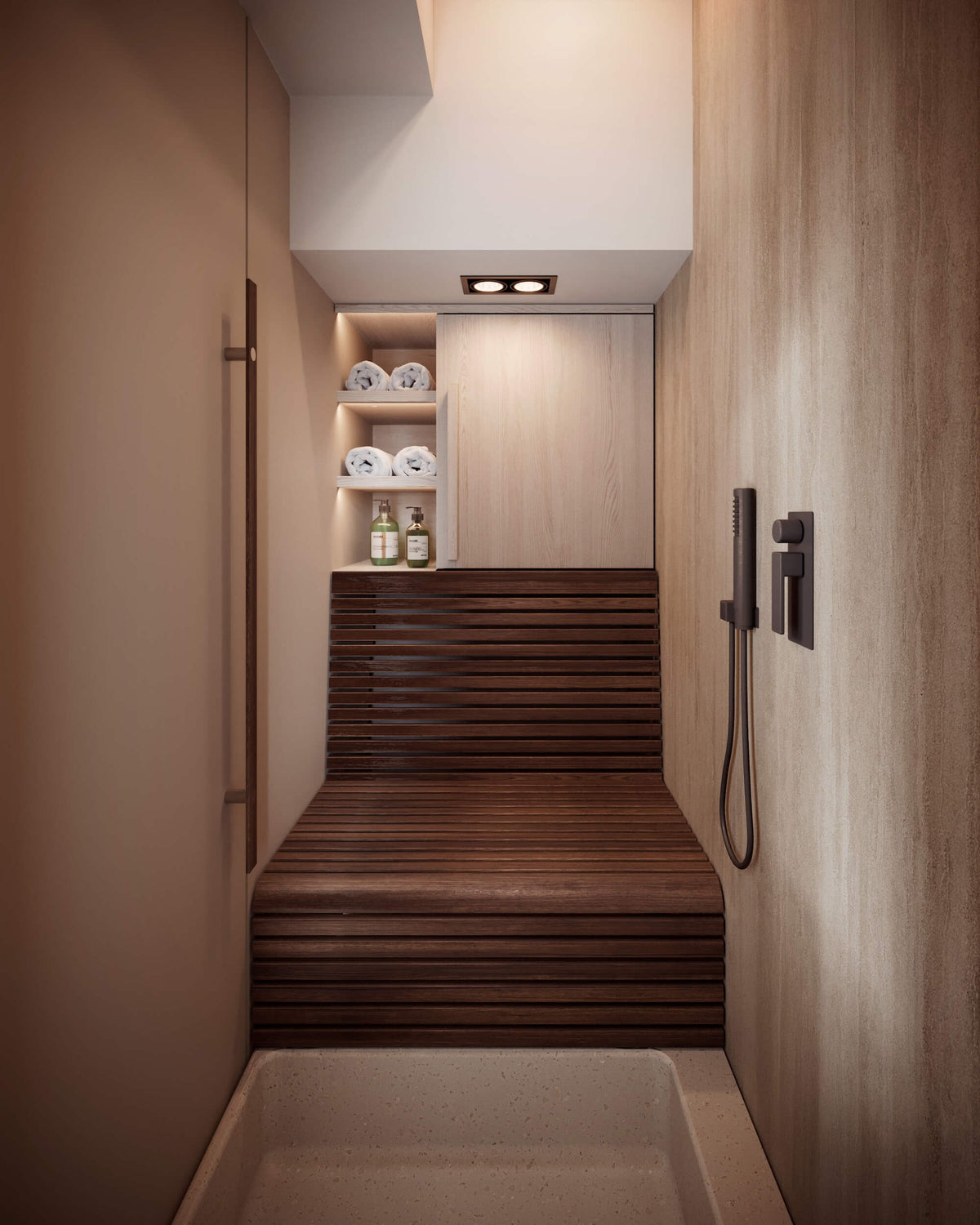

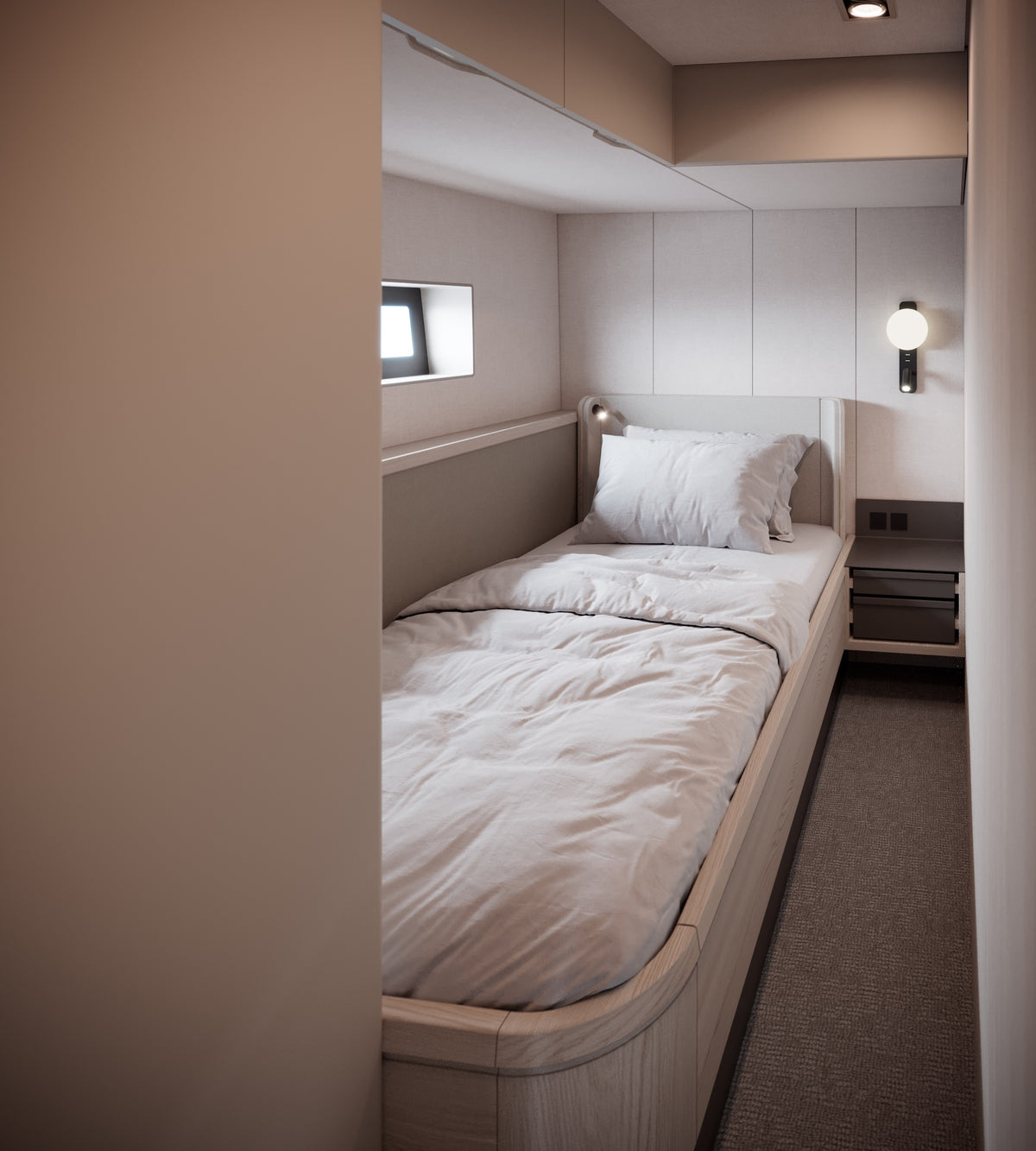

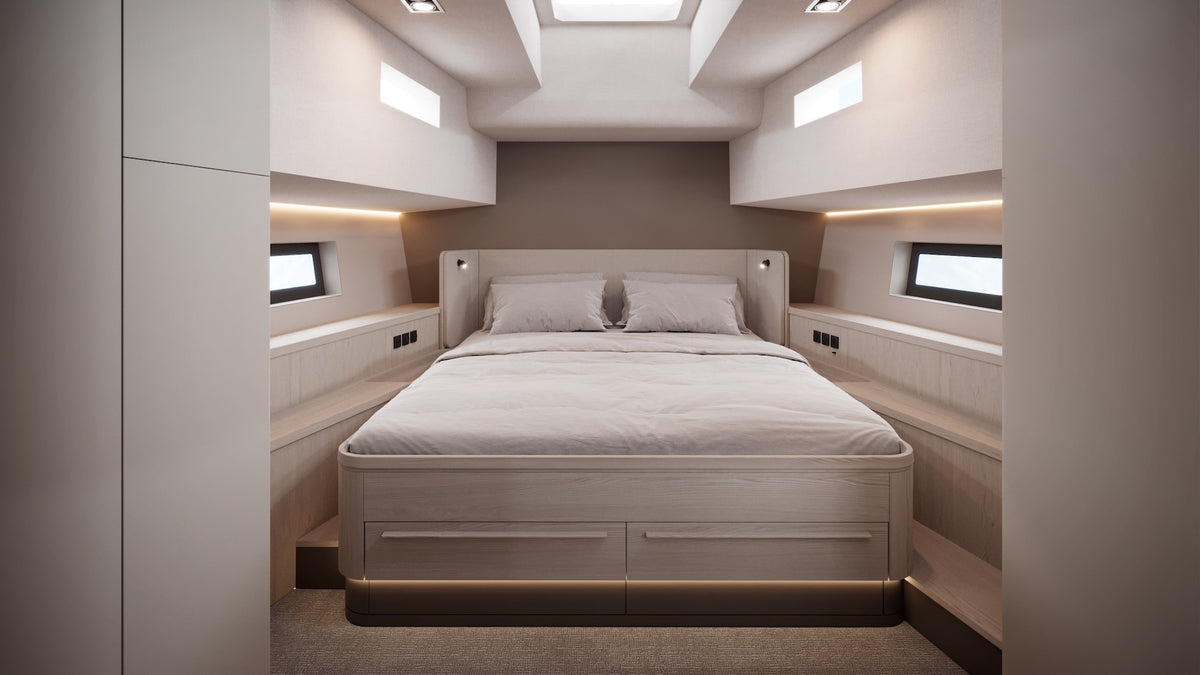

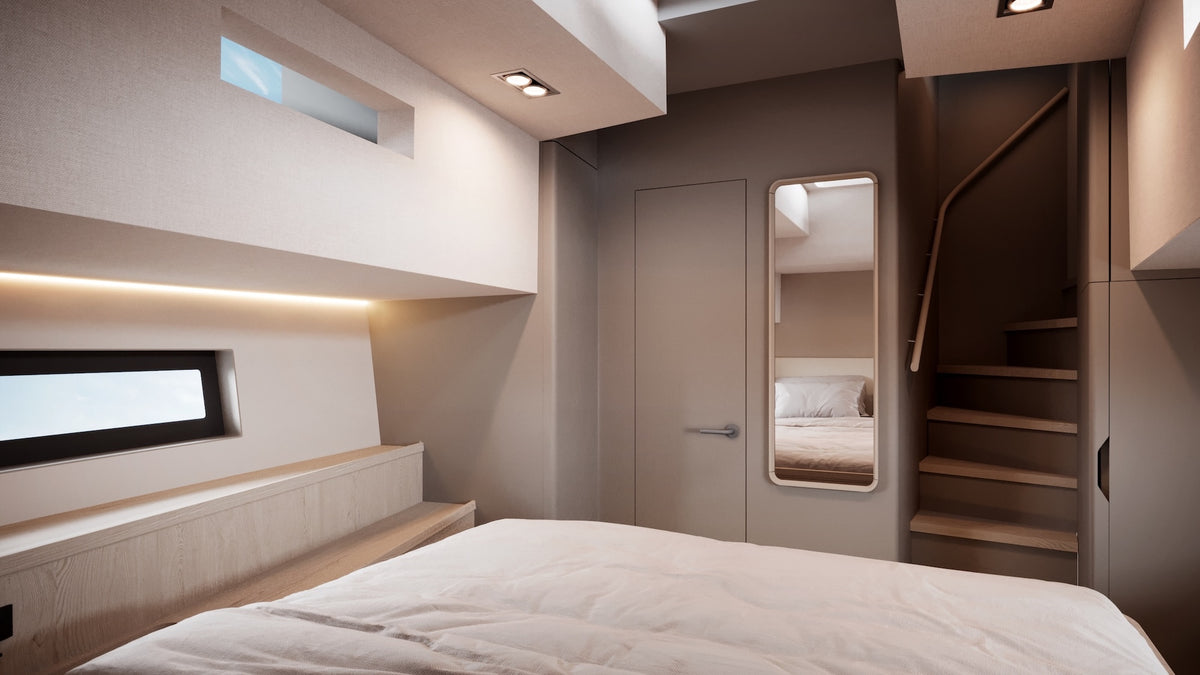

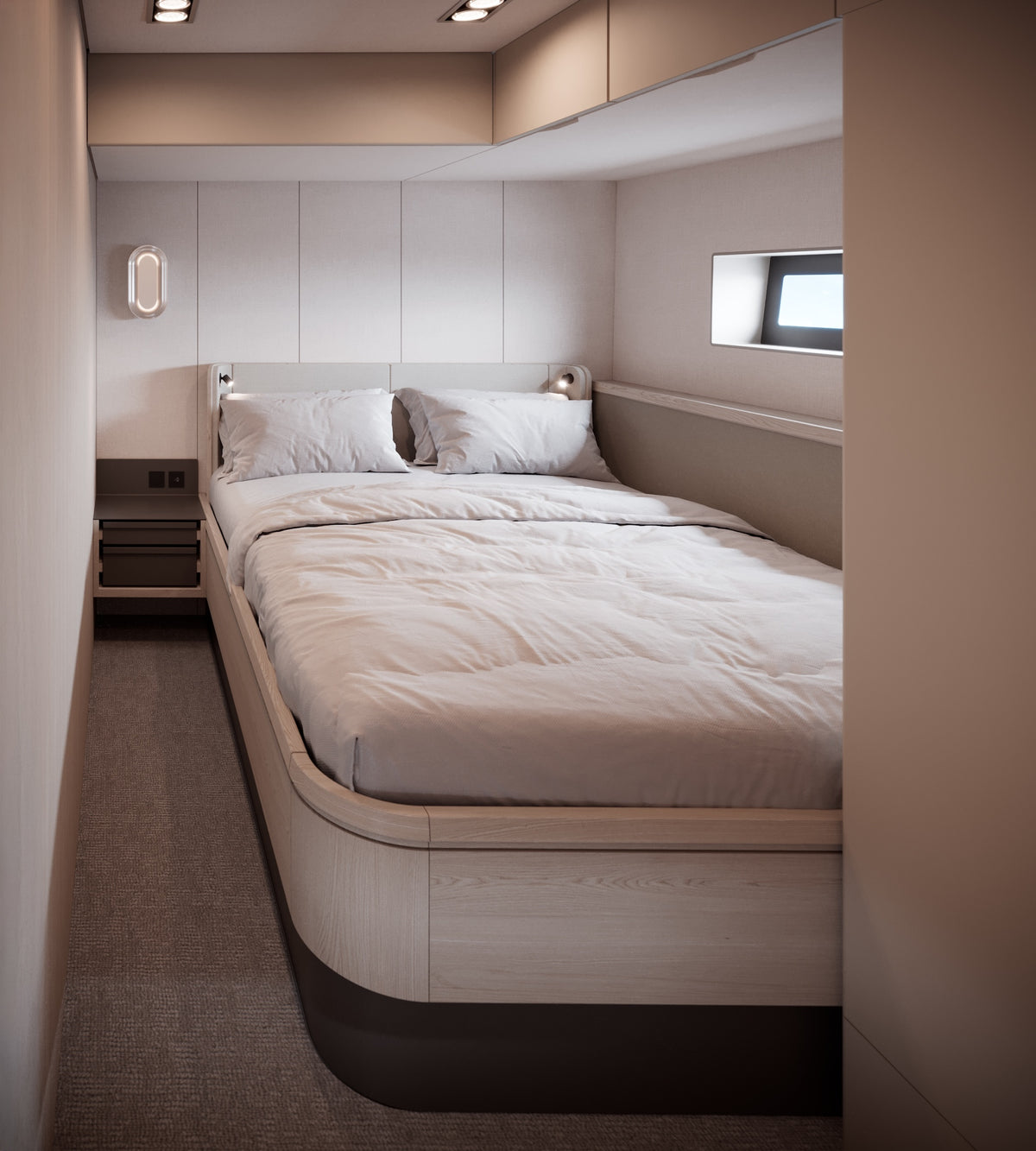

The interior layout offers several accommodation configurations to suit different needs. The forward cabin includes a double berth with a private bathroom and toilet. The aft section can be arranged with different cabin layouts, providing beds for up to four people with a bathroom positioned beside the utility area, making it easy for everyone to access as a day head and shower.
Blending Form and Functionality

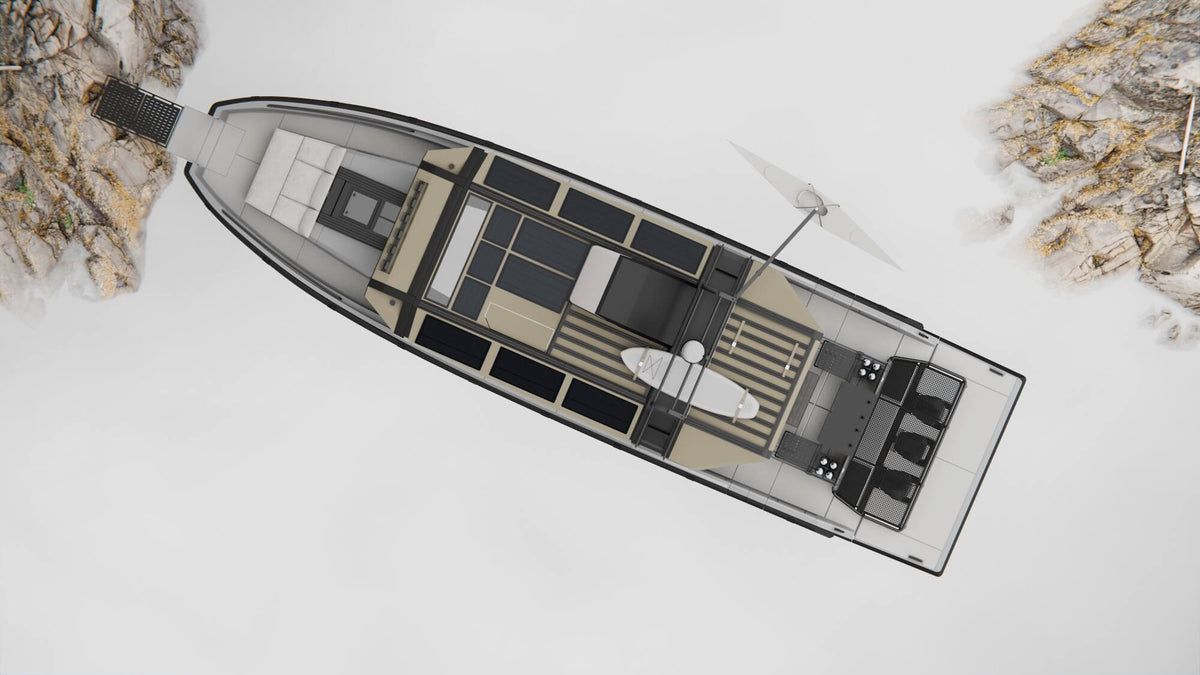

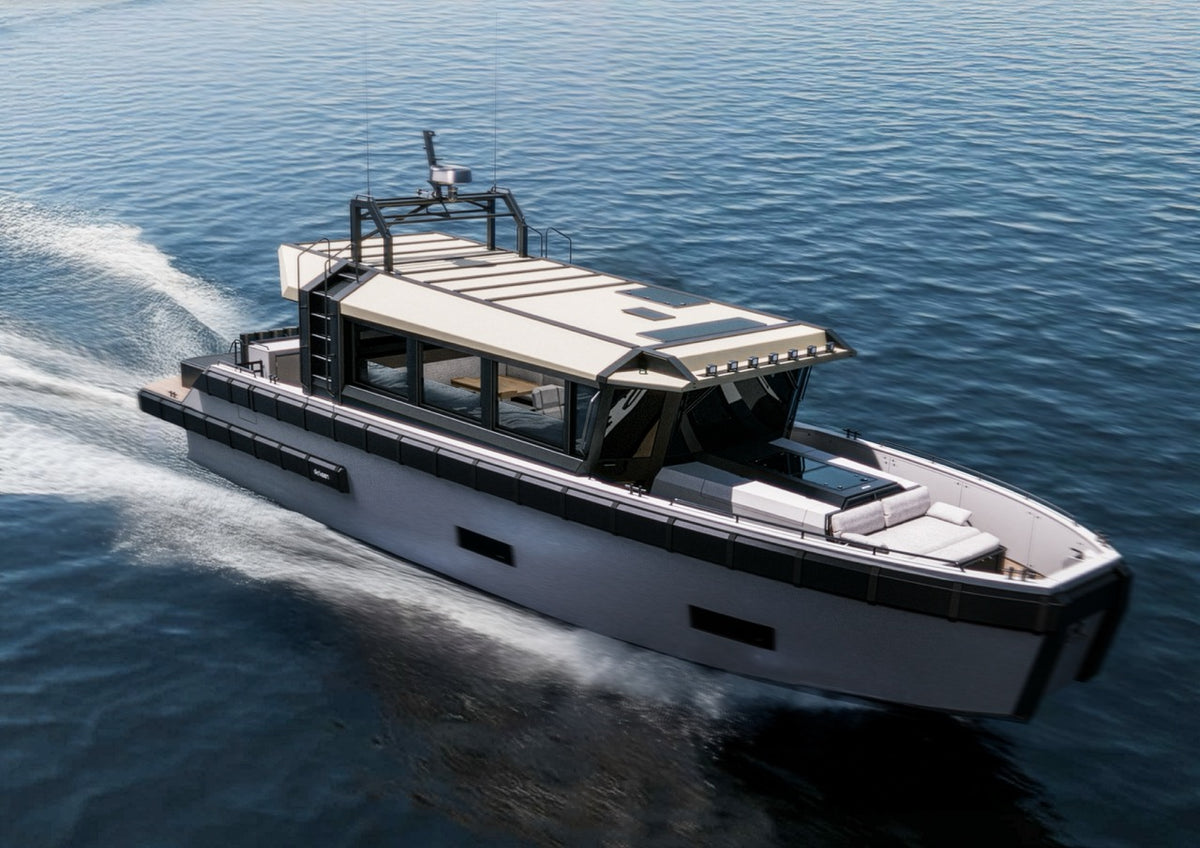

The distinctive bow shape is driven by function, allowing direct access to the shore through the bow.

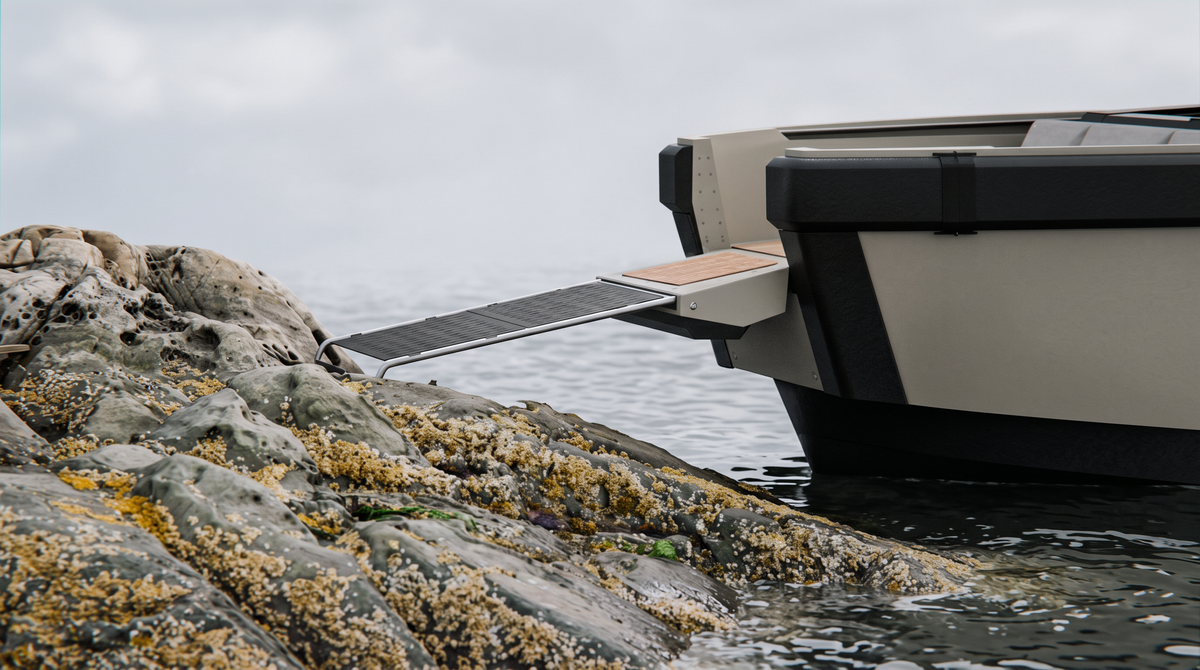

Bow boarding ramp
The beach access unit features a single moving component operating on one axis, controlled simply by pulling a rope.
Safety railings
Painted aluminium tube railings are engineered to withstand high forces and shaped with comfortable profiles. Ergonomically designed and positioned throughout the boat to make life onboard safe for all ages.
Decking materials
All walking surfaces on the deck and aft platform feature a synthetic decking. Responsibly sourced wood decking is available as an additional option.
Built-in Functionality for Self-Sefficient Exploration
The Arksen 55 is designed for owners who value autonomy at sea. The yacht’s design prioritises safety, durability and self sufficiency, allowing confident exploration well beyond familiar waters.

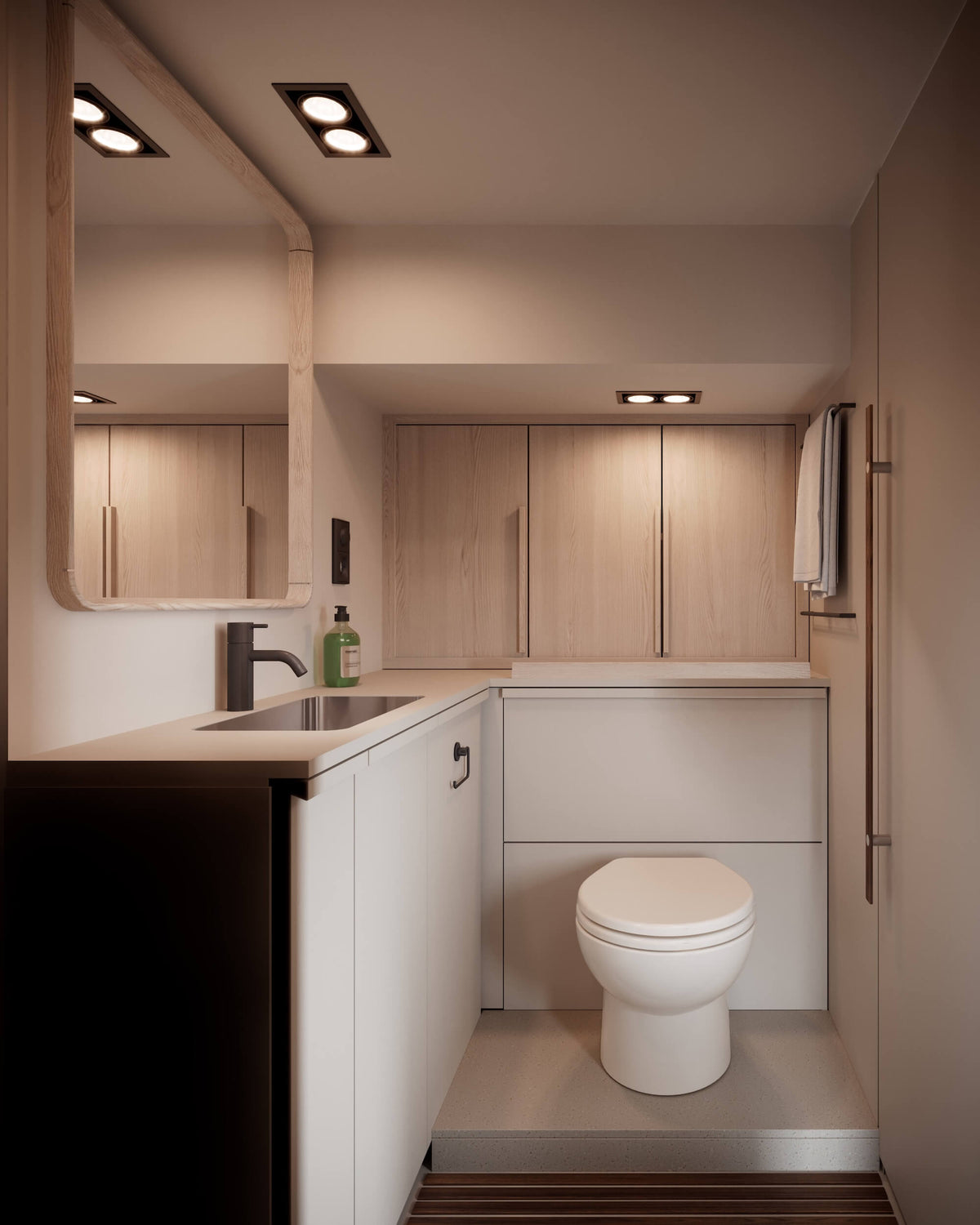

Comforts of Home at Sea
Calm interiors, carefully chosen materials and practical design make life on board easy. Everything is intuitive and considered, without compromising comfort.
All aspects of interior take into consideration safety at sea and the ease of maintenance and cleaning. All fixtures and fittings are of an attractive yet durable standard, suitable for a marine environment.
Emporium of Adventure
Inspiring Change
Arksen was created to push the boundaries of adventure, delivering new opportunities for the next generation of explorers while simultaneously supporting ocean conservation.
Purpose
The ocean is our north star. As a marine-led 360-degree adventure company, we create iconic adventure products and experiences for a community of like-minded individuals.
Philosophy
Shifting the shape of adventure for a world in transition, we design for the soul and develop for performance.
Philanthropy
Arksen and 10% for the Ocean encourages people to dedicate 10% of charitable giving to fund critical ocean research and recovery projects around the world.
Sustainability
We follow a Circular Economy approach in everything we create, ensuring that we re-circulate the Earth’s valuable resources.
