Specification
Arksen vessels are all designed and built to allow owners to explore the globe, with the confidence, comfort, independence and efficiency expected of a serious, modern, long-range cruising yacht. Robustness, reliability and efficiency are they key elements considered in every aspect of the Arksen 85’s journey, from drawing board to handover, with redundancy in all critical systems and care taken to ensure accessibility and serviceability at sea.
Starting price
Price on request
Length overall
27.40 m (89’57”)
Beam overall
7.01 m (23'4")
Draft
1.55 m (5′)
Range
7,000 nm
Structural Specifications
Length Overall
27.40 m (89'11")
Length of Hull
26.22 m (86')
Length Waterline (DWL)
26.06 m (85'7")
Loadline Length
23.99 m (78'8")
Beam Overall
7.01 m (23')
Depth Moulded
2.20 m (7'3")
Draft to Underside of Skeg (DWL)
1.55 m (5'1")
Lightship Displacement
75 tonnes (165,000 lb)
Departure Displacement
98 tonnes (216,000 lb)
Half Load Displacement (DWL)
88 tonnes (194,000 lb)
Fuel Capacity
17,500 litres (4,625 U.S. gallons)
Fresh Water Capacity
6,000 litres (1,585 U.S. gallons)
Structural Design
Lloyds SSC Rules
Commercial Coding
Codeable to UK MCA MGN280(m) Category 0, Unrestricted
Range & Efficiency
Performance
The Arksen 85 has been developed to sit at the top end of the distance chart in the explorer yacht market. Efficiency has been a focus of its design from day one, with the aim of creating an exceptional range with comfortable margins.
Cruising Speed
9 – 12 knots
Range
7,000 nm
Journal Link
The Art Of Going The Distance - Read more
This article dives into the meticulous design and engineering of the Arksen 85, examining the key factors that ensure its exceptional distance capability and efficiency for global adventures.
Propulsion & Capability
Standard Engines
Twin Scania DI09 072(M) turbocharged diesel engines, each providing 294kW (400bhp) at 2100rpm
Optional Hybrid Propulsion
Praxis Serial Hybrid System: 2 x 246kW Electric Motors 3 x 200kW Variable Speed Diesel Generators
Generator
A Kohler 35EFKOZD AC single phase, 35kW, 1500rpm, 50Hz
Thrusters
36kW (48hp) Bow Tunnel Thruster
Optional Thrusters
36kW Retractable Stern Thruster
Trim Tabs
Transom mounted active interceptors to mitigate pitch and roll
Optional Stabilisers
Fin Stabilisers, Gyro Stabilisers, Flopper Stoppers - Read article
Electrical & Domestic Systems
Optional Solar
6kW Maximum output
Inverters & Chargers
Victron Quattro multiple input/ output inverter/chargers and a 24VDC service battery bank.
Batteries
Service Batteries 4x 24V 280Ah LiFePO4 marine lithium batteries (22kWh)
24V high cold cranking output engine starter batteries. An Auto Charge Relay (ACR) from the service battery bank charges engine start banks
24V LiFePO4 emergency batteries with a dedicated 30 Amp charger, and an ACR from the service battery bank.
Power Management
Two shore power inlets to accept 230VAC 50Hz shore power (based on a European specification boat) with the ability to also accept 60Hz shore power when operating in 60Hz regions
Watermaker
Fitted with large freshwater tanks, integral to the forward hull structure, fed by a 300 litre/hour watermaker
Air Conditioning
Variable frequency chiller units fitted within the engine room have a tempered water ring main supplying blown air fancoil units within each area of the accommodation
Optionally, a ‘Tropical’ air conditioning system can be fitted, providing extra capacity
Heating
The same tempered water circuit heats the vessel using blown air fancoil units. In heat mode, water is heated by a variable
frequency chiller in reverse cycle mode or by waste heat recovery from machinery heat exchangers
Convection radiators are installed in the forepeak and lazarette to prevent freezing and condensation
Optionally a diesel boiler can be added or an air conditioning unit in the lazarette. The tempered water circuit can also heat domestic fresh water, reducing electrical loads
Refrigeration
The vessel is fitted with extensive cold storage, with refrigerators and freezers suitable for long-distance cruising
Optionally, the generous fridge and freezer capacity in the galley can be supplemented by additional freezer capacity in the lazarette and a fridge on the bridge deck
Cooking
Miele 600mm induction hob mounted on the outboard counter in galley as standard
Miele combi microwave/convection oven fitted within the aft bulkhead
Miele convection oven Optionally, boiling water taps can be fitted at galley/bar sinks as required
Dishwasher
Miele Rapid slimline dishwasher
Laundry
Optionally, the lazarette utility area can be equipped with a Miele Professional washer and Miele Professional heat pump dryer
Equipment
(A) The Lazarette
Can be accessed in a number of ways:
- From deck, via a large hatch
- From the engine room via the vessel interior
- From the bathing platform, via a side-hinged watertight door
(B) Bathing platform
Bathing platform provides easy access to the water, boarding the tender, using toys stowed in the lazarette or deploying scientific equipment Optionally, a large, bottom- hinged, hydraulic lazarette door can be fitted to form a deck beach area.

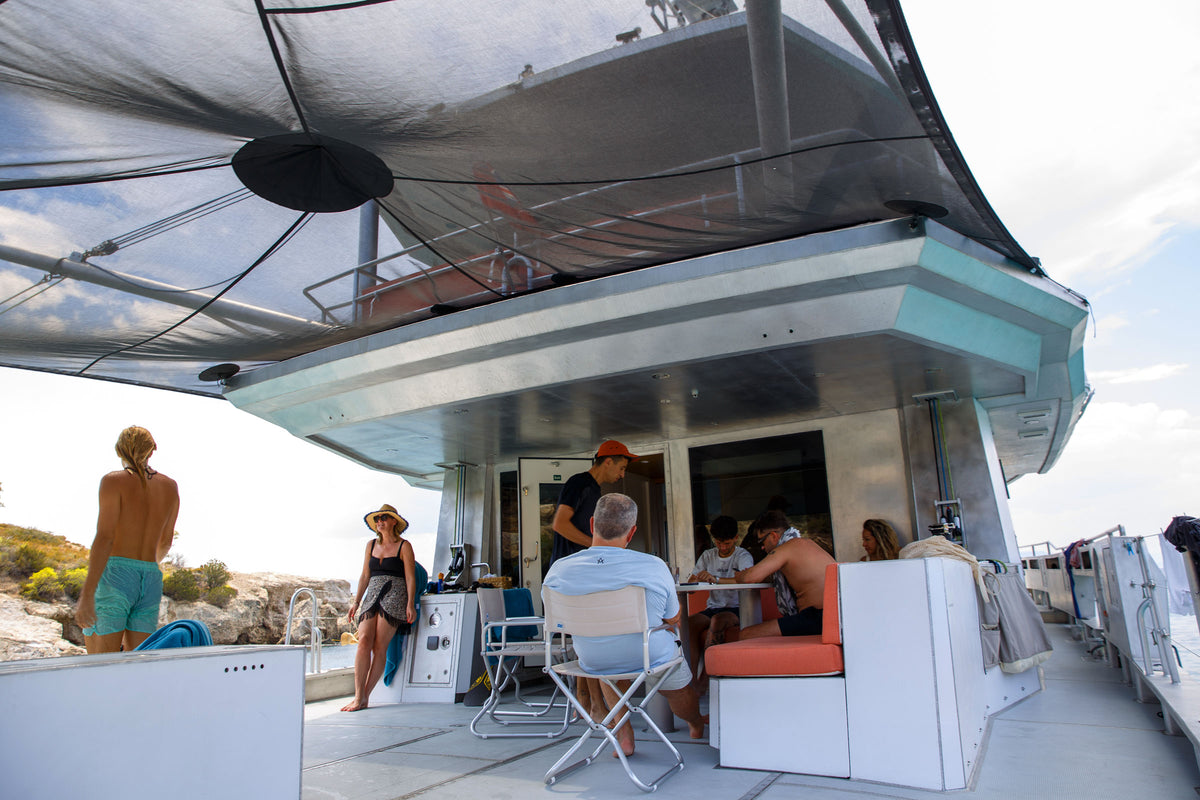

(C) Aft deck
Load capacity of 4,000kg Maximum tender length of 5.2 Metres A range of optional tender handling and stowage systems are available. Tender chocks can be fitted on the aft deck to suit the Owner’s choice of tender and deck arrangement
(D) Tenders
Tenders can be lifted onto the aft deck and deployed overboard using the outriggers and electric winches, or a crane if required.
(E) Foredeck
Sockets can be fitted within the port and starboard foredeck bulwarks, for fitment of an optional davit, to lift small tenders/toys/equipment onto the foredeck
Safety Equipment Stowage
Stowages are built-into the fairings on each side of the superstructure, for liferafts to meet the Owner’s requirements, up to a capacity of 16 persons per side. Stowage is provided for man overboard equipment and EPIRB to allow easy deployment.
Layout Options
The Arksen 85 layout has been designed to optimise space and functionality, but it can also be adapted to suit specific personal needs and preferences.

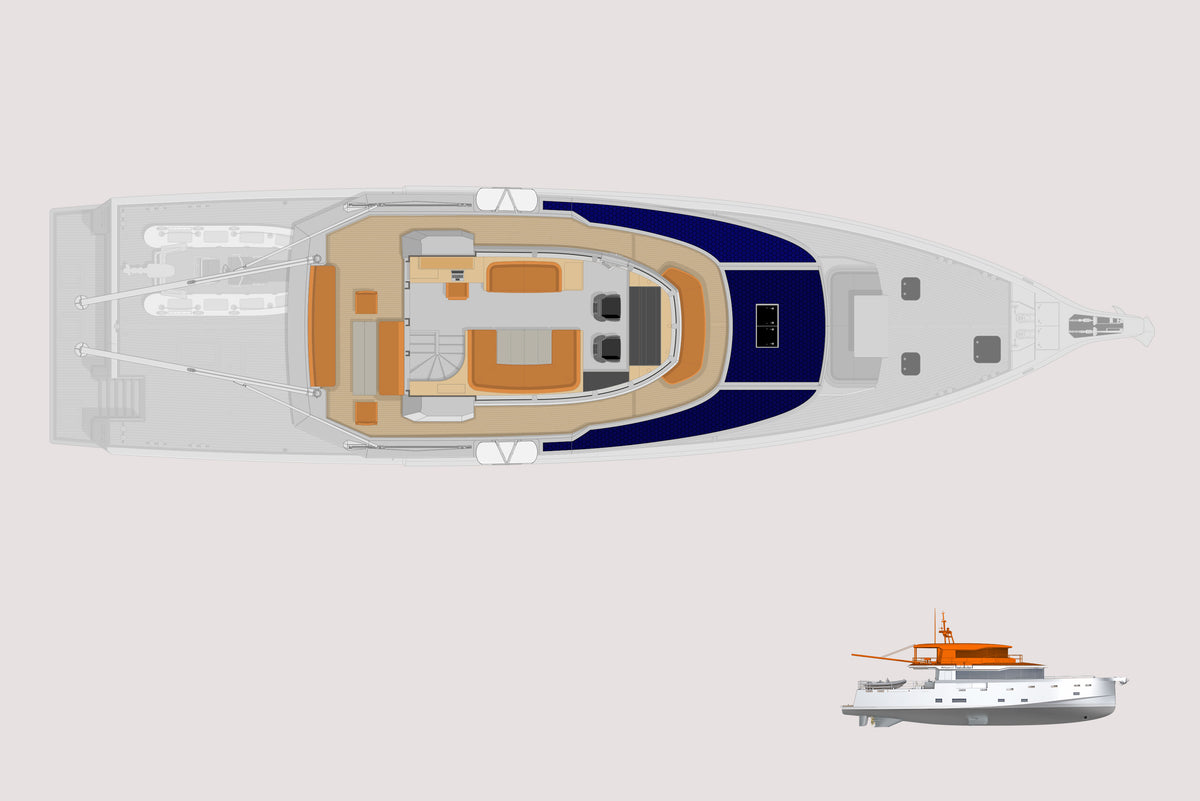

Bridge Deck

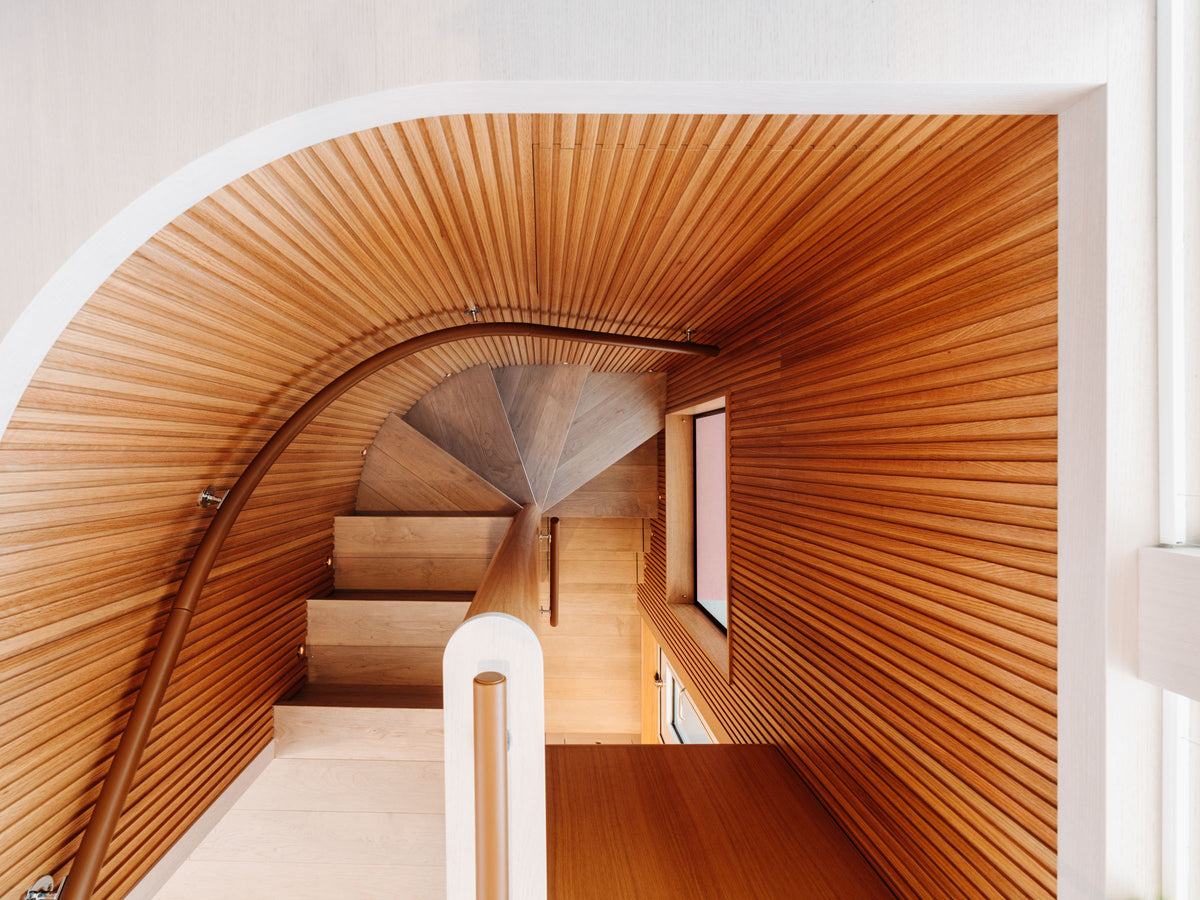

From the main deck entrance lobby, a stairway leads to the bridge deck. The upper saloon has storage to Port, a large comfortable seating area and table to starboard and a further settee to port. A desk/chart table is fitted aft of the settee to port, for admin and chart work, with multi-functional navigation displays and adjacent storage for charts and books.
Forward of the seating area, the navigation bridge contains screens, instruments and controls for the monitoring and operation of the vessel.
Two captain’s seats at the bridge allow comfortable watch keeping underway. A weathertight door adjacent to the bridge provides direct access to the bridge deck external ‘Portuguese bridge’
The aft weathertight door leads to a covered patio area, with a table and bench seating for 6.

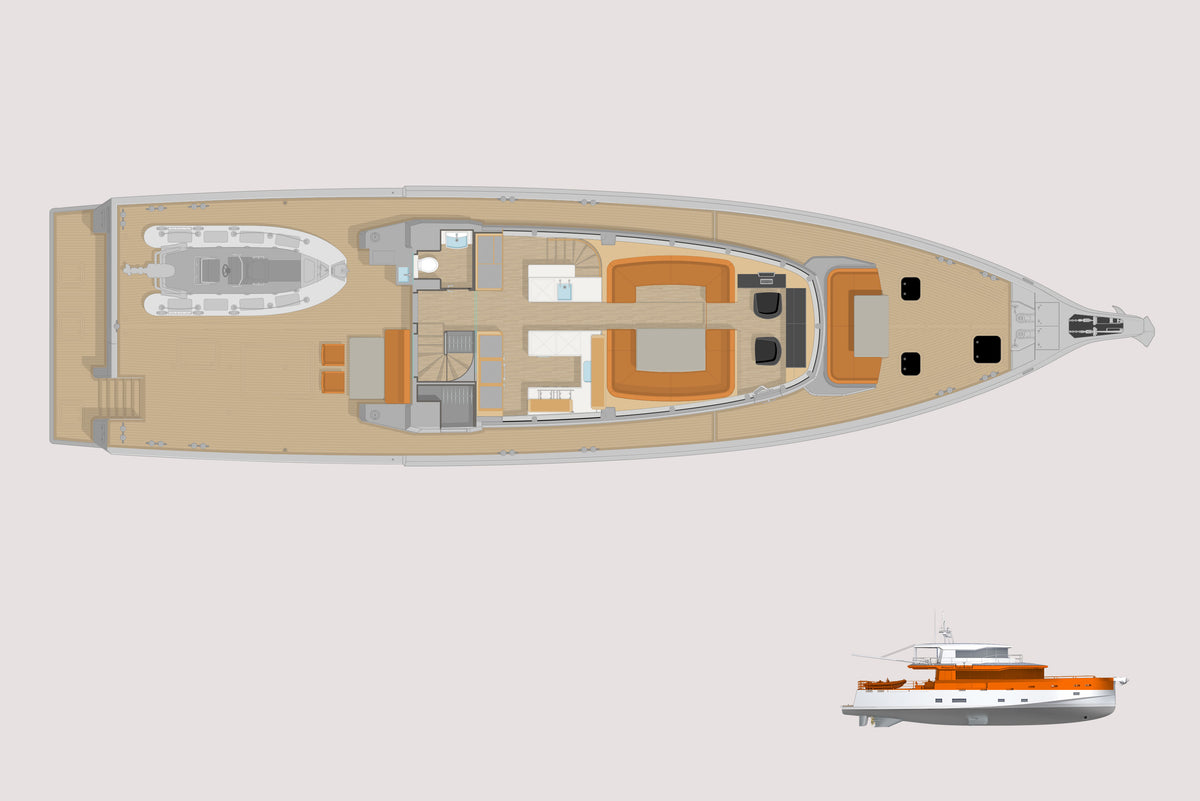

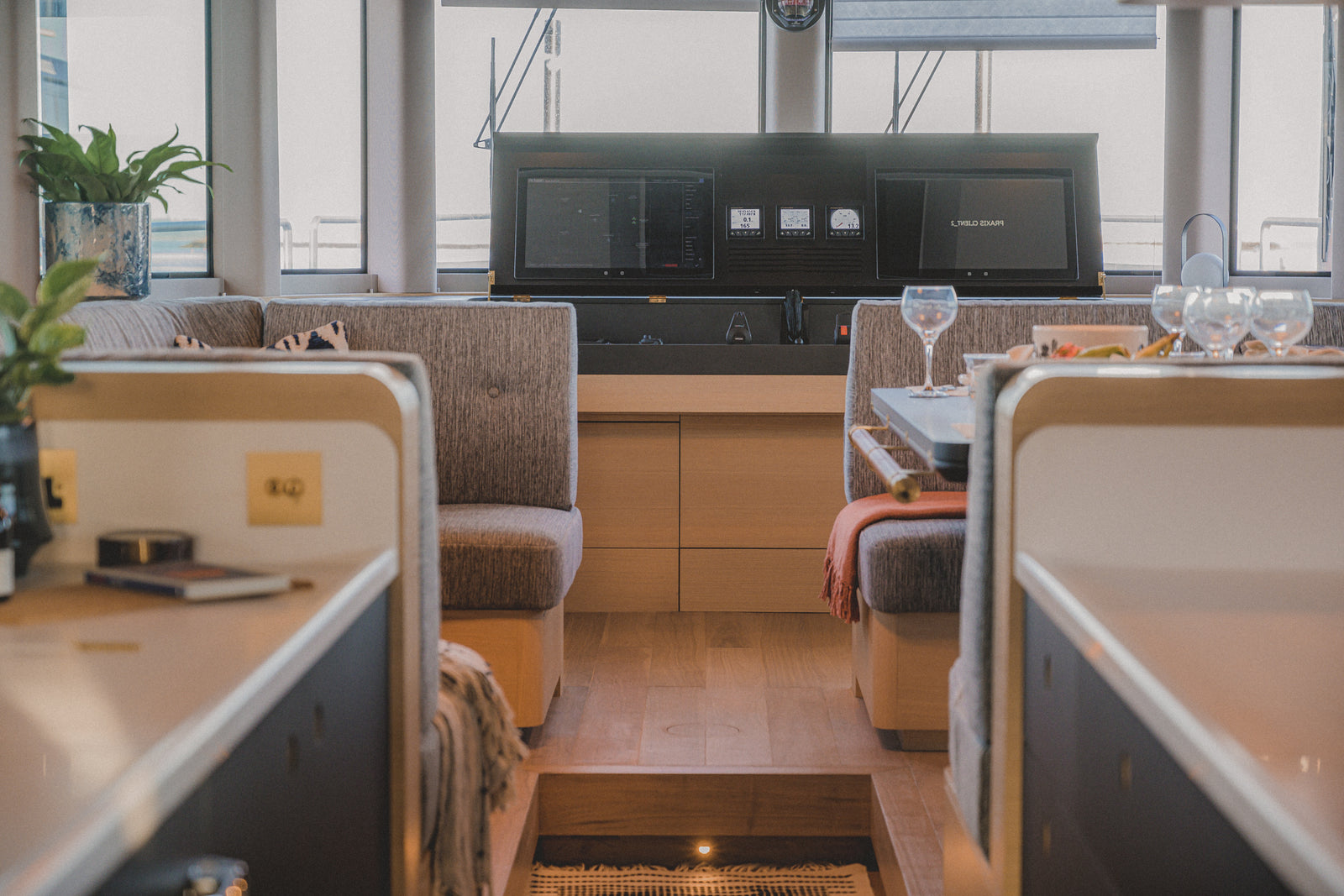

Main Deck
From the aft deck, a watertight door leads into a lobby area, with access to a day head containing shower, sink and head to port. A stairway to the bridge deck is positioned to starboard, with generous stowage space beneath.
A glazed sliding door leads forward into the main saloon. Extensive glazing provides panoramic views.
To starboard is the galley, containing appliances, refrigeration and significant stowage space and counter-top area. Optionally, the galley can be configured to allow separation from the main saloon.
To port is further stowage including access to electrical switchboards and communications equipment, and a useful counter with a small sink with fridge and ice maker below.

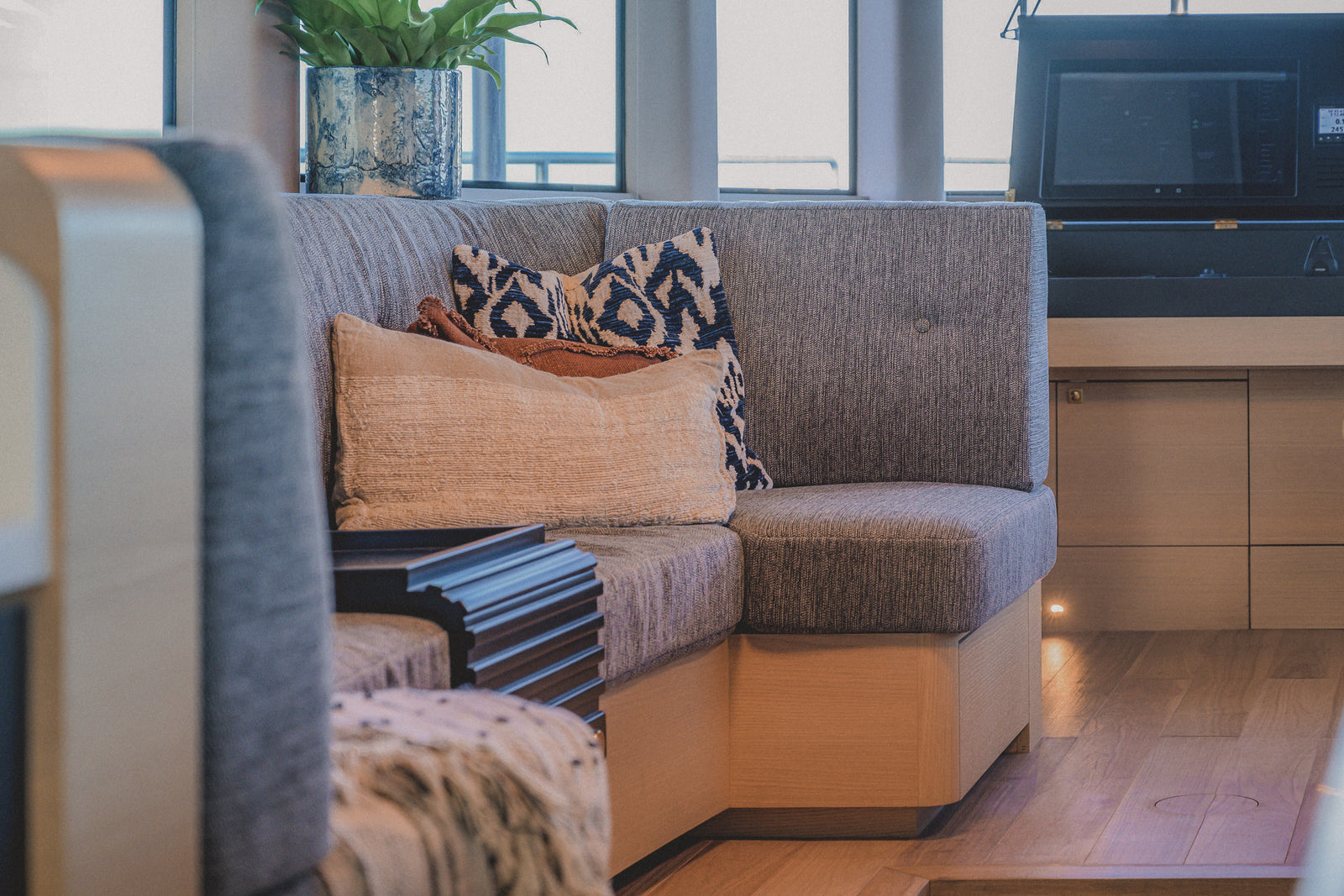

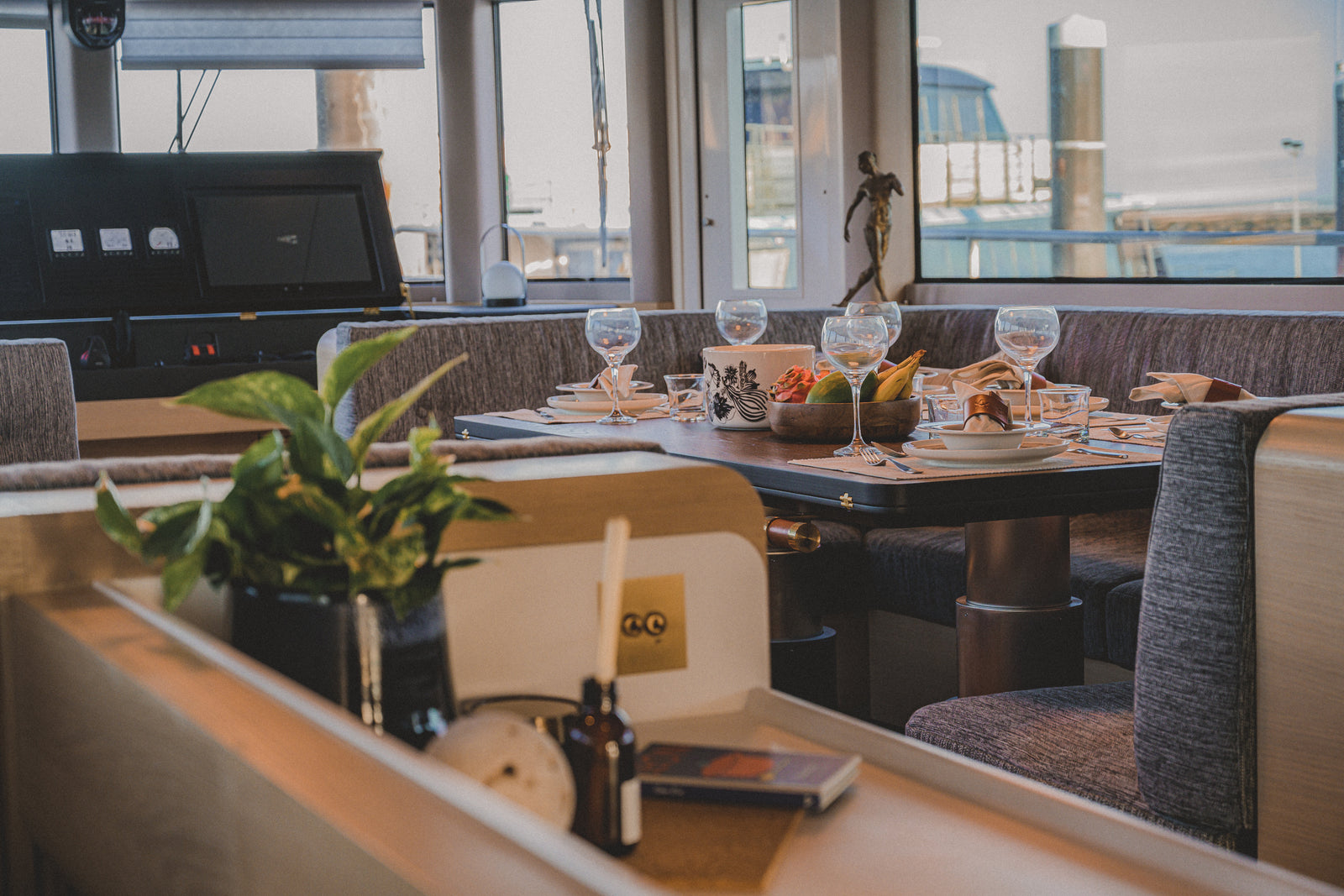

Outboard, a stairway leads down to the lower deck. Moving forward, to port is a settee with seating for four. To starboard comfortable seating for six surrounds a large table. Removable stools increase comfortable seating capacity to eight. The table can fold out to seat up to 12.
At the forward end of the saloon is a separate seating area with settee and desk.

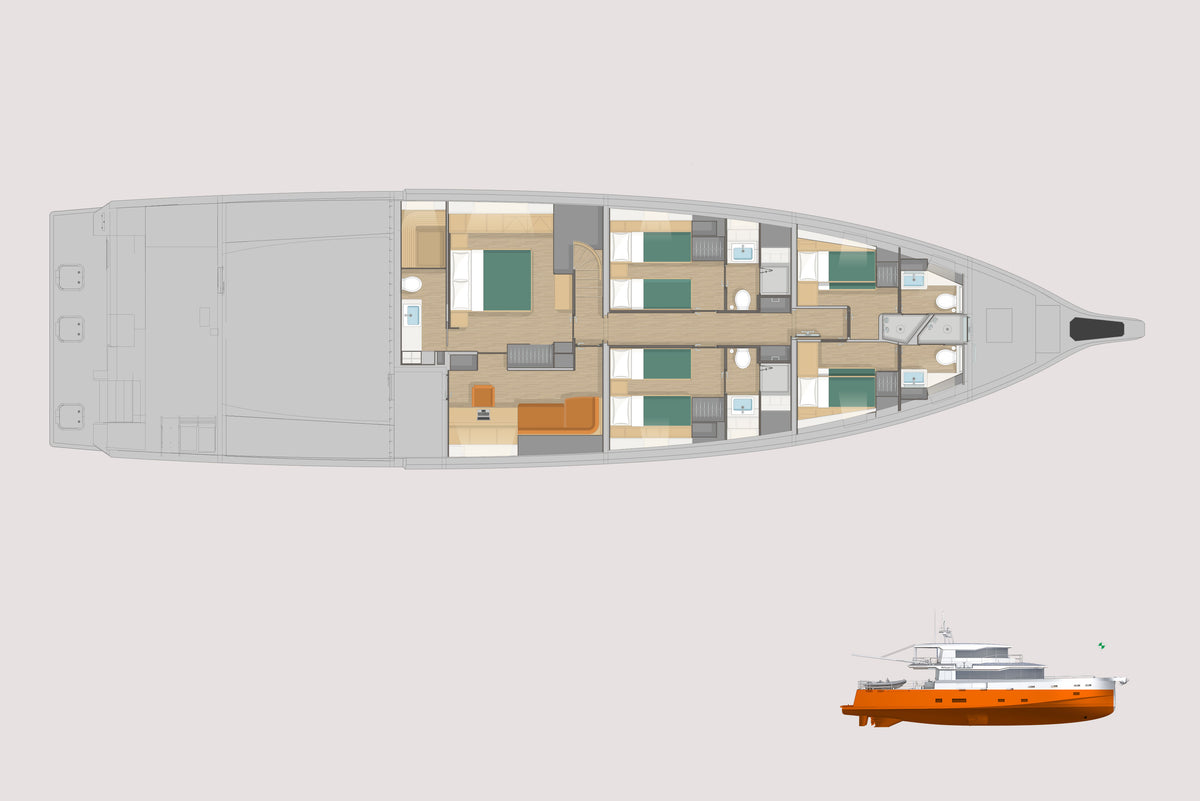

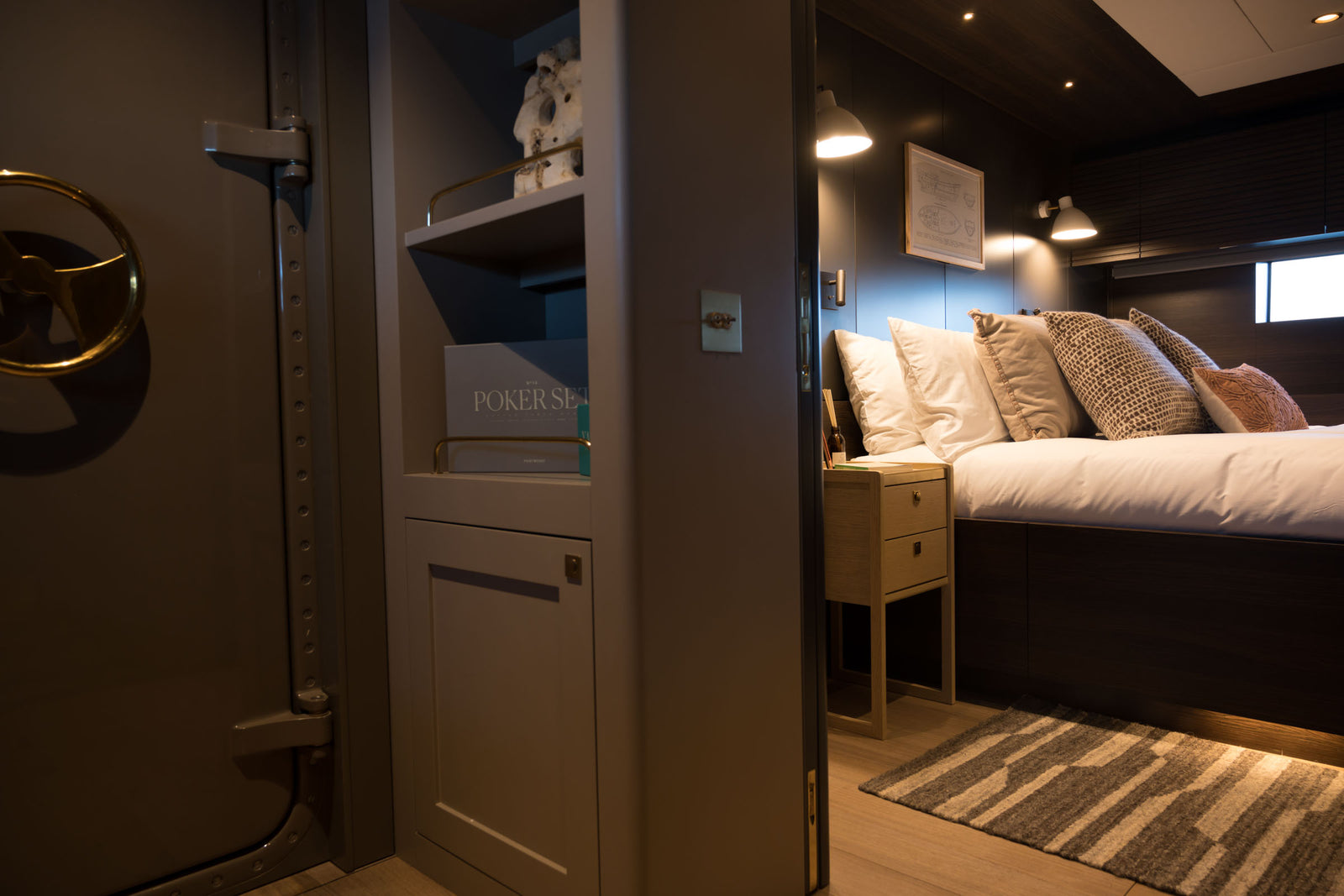

Master Cabin
From bottom of the stairway, a door leads from the lobby aft into the Master cabin. A substantial portlight in the a side provides plenty of natural light.

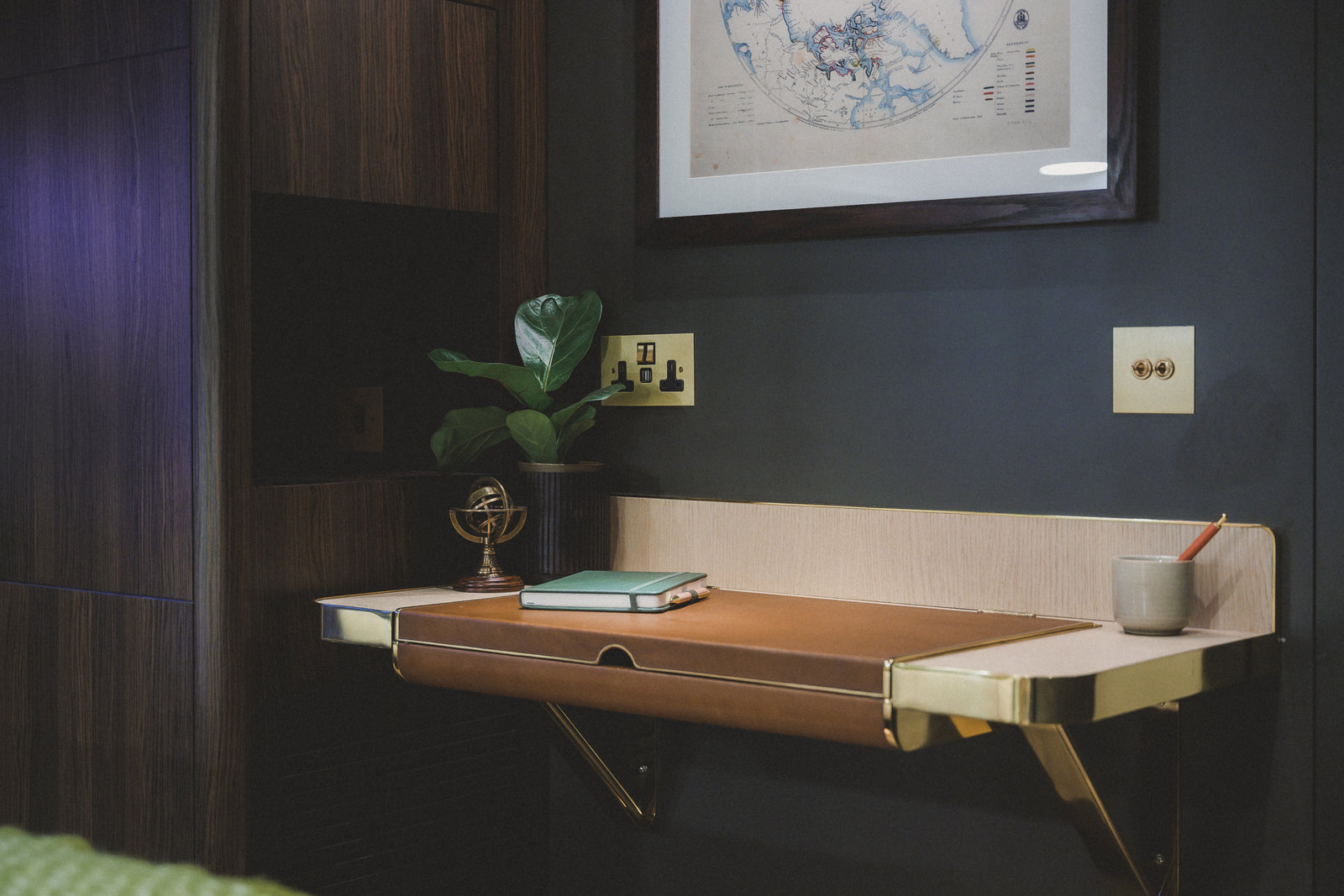

A King size bunk is located against the aft bulkhead low level cabinets either side. A desk with adjacent storage is located forward. Lockers and hanging cupboards are located to Port and Starboard.
A door leads aft into the en-suite Master Bathroom, containing large vanity unit and storage, heads and a large shower stall. The shower stall can optionally be specified as a steam room.

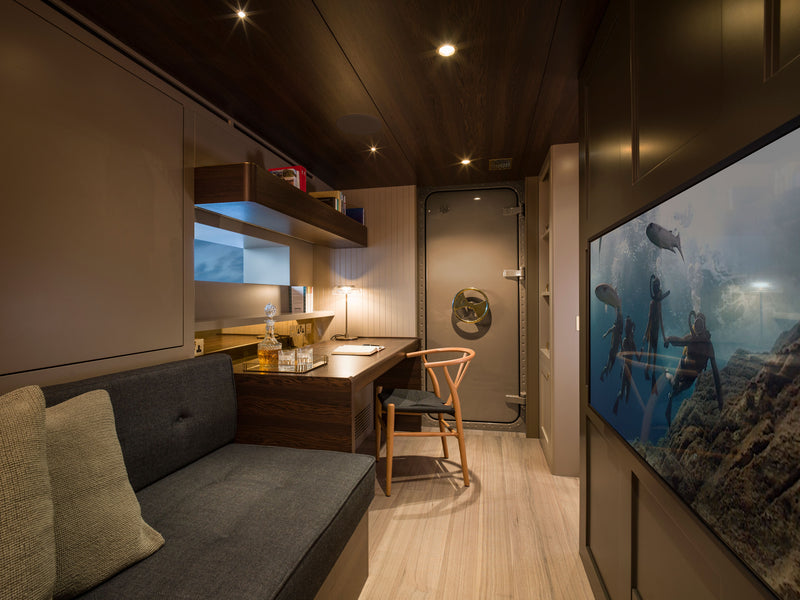

To starboard of the Master cabin, the snug is accessed through a sliding door. A substantial portlight provides natural light. A comfortable settee is position forward of a writing desk.
Optionally, a single pullman berth can be fitted in the
Snug. A door aft leads to the Battery room. A door forward leads to the lobby.

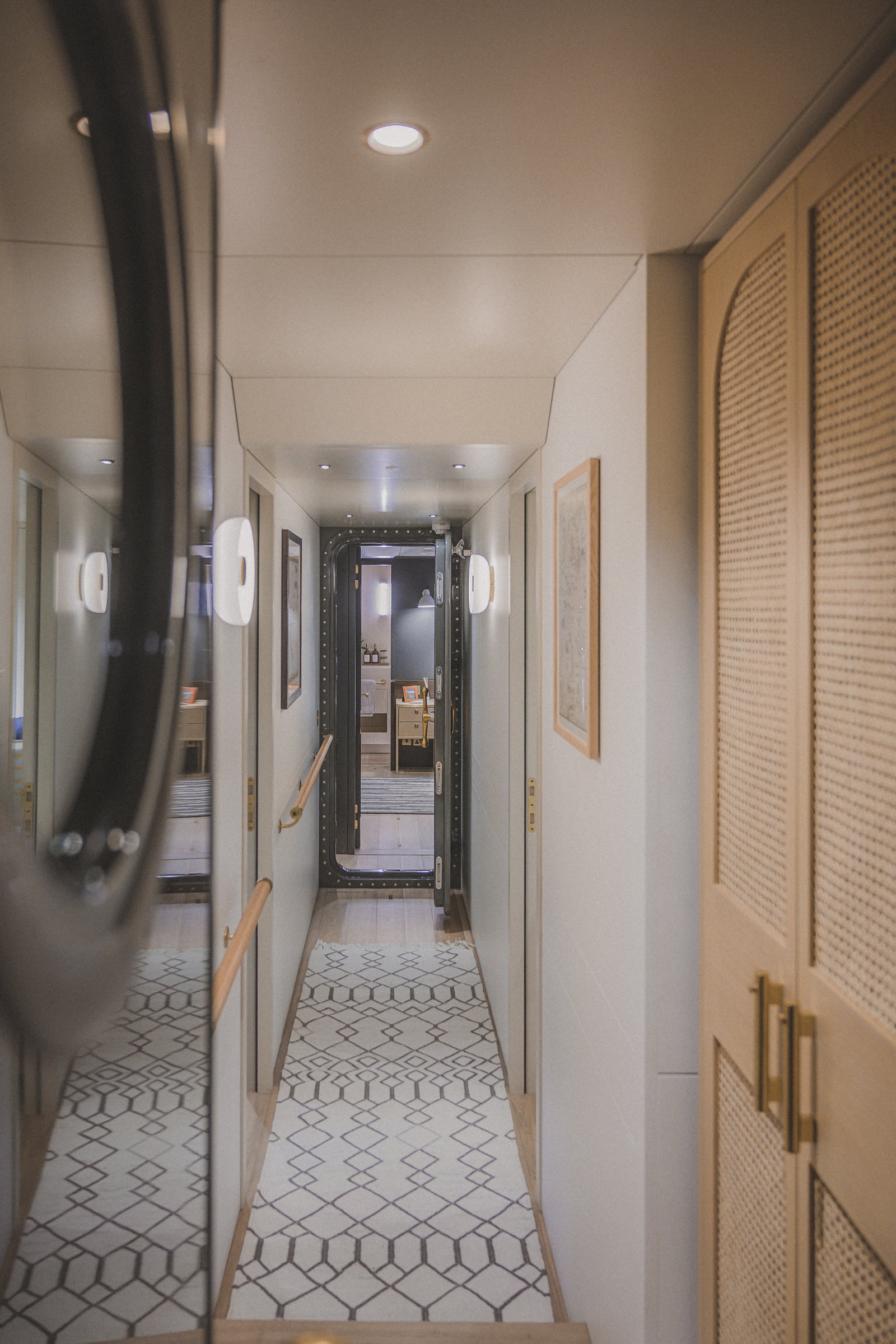

Guest Cabins
To port and starboard of the Lobby are two guest cabins. Each cabin is configured with a ‘convertible’ arrangement, comprising a fixed single bunk outboard and a sliding single bunk inboard, allowing use as a twin or a double cabin.
From each cabin a door leads forward into the en suite bathroom containing vanity unit, heads and shower stall.

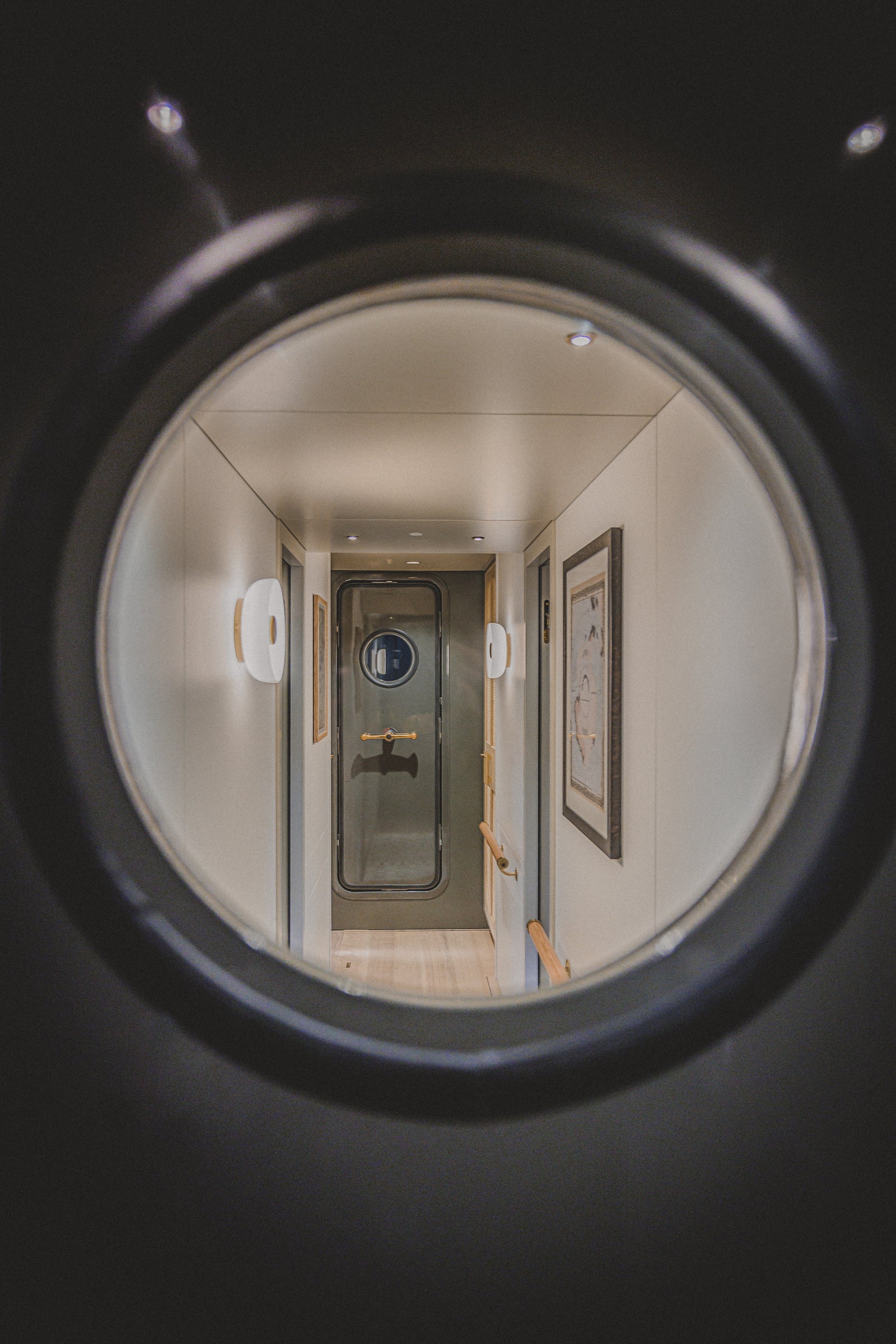

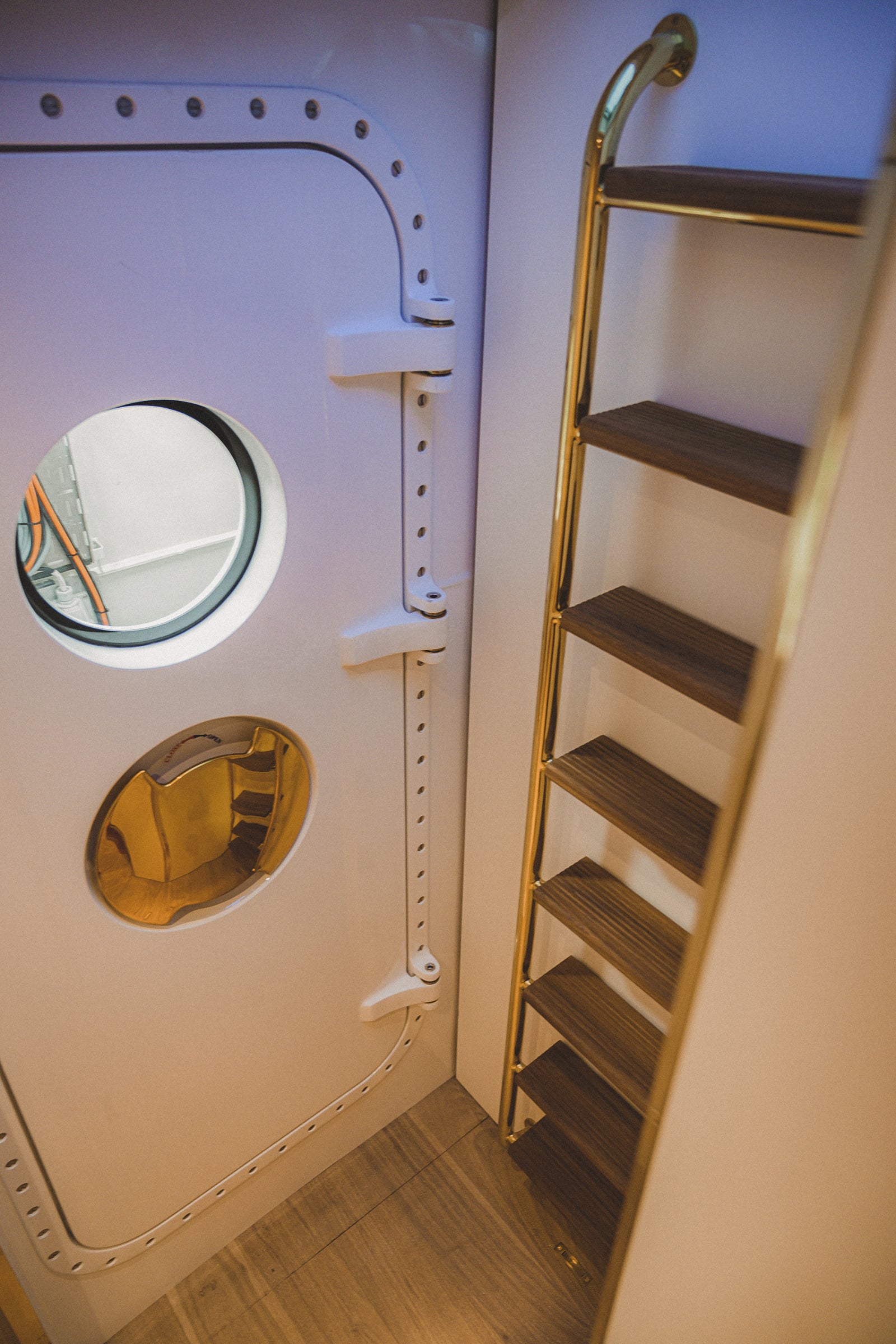

Forward of the lobby, a watertight door leads to the port & starboard forward guest/crew cabins. Each cabin contains upper and lower twin bunks. A door in each leads forward to the en-suite heads containing vanity unit, head and shower stall. These cabins are suitable as the crew cabins, if crew are carried.

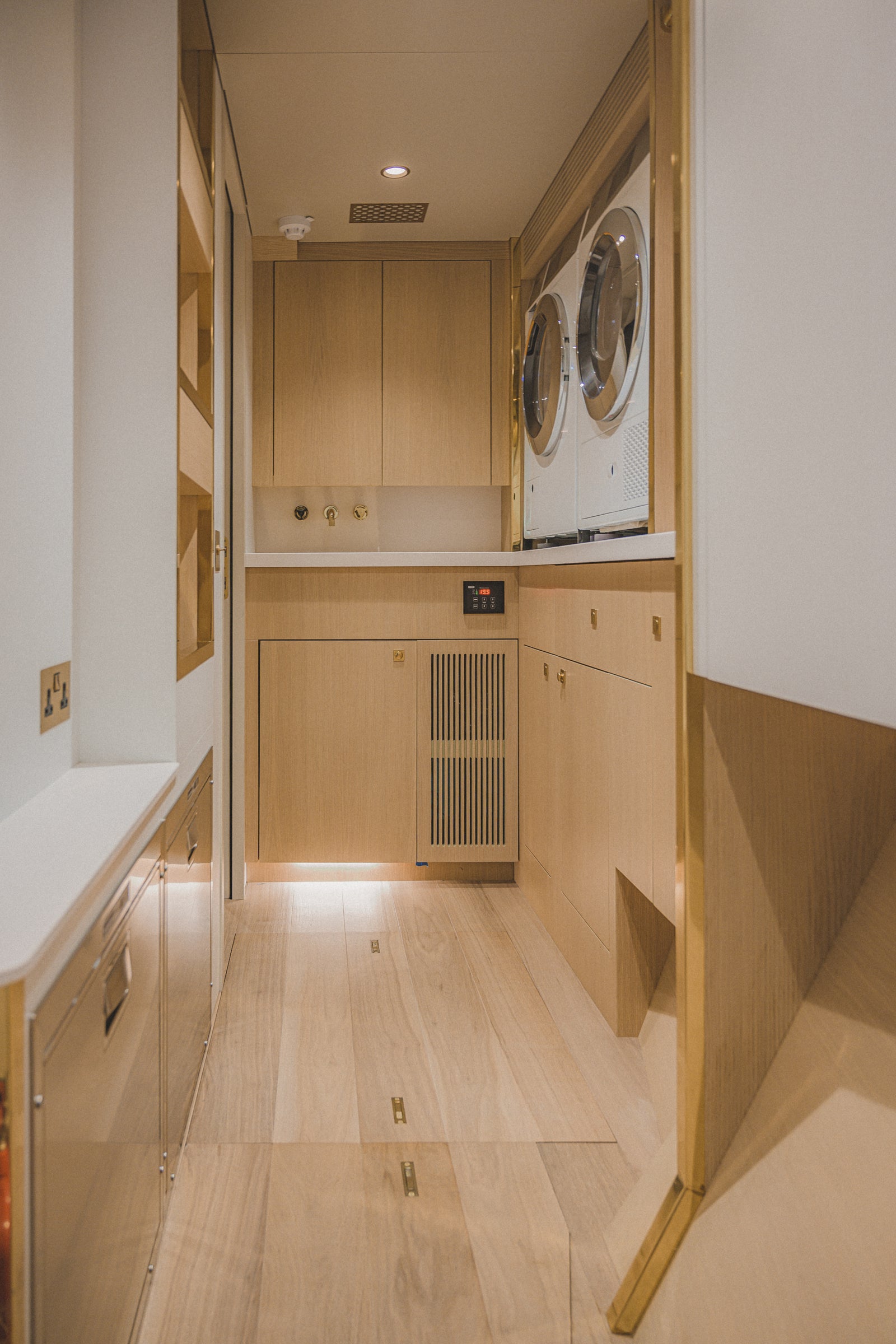

Optionally, the port forward cabin can be configured as utility space, with washing machine, condenser tumble dryer, and extensive storage space. Within the starboard forward cabin WC, a watertight door allows access to the forepeak.

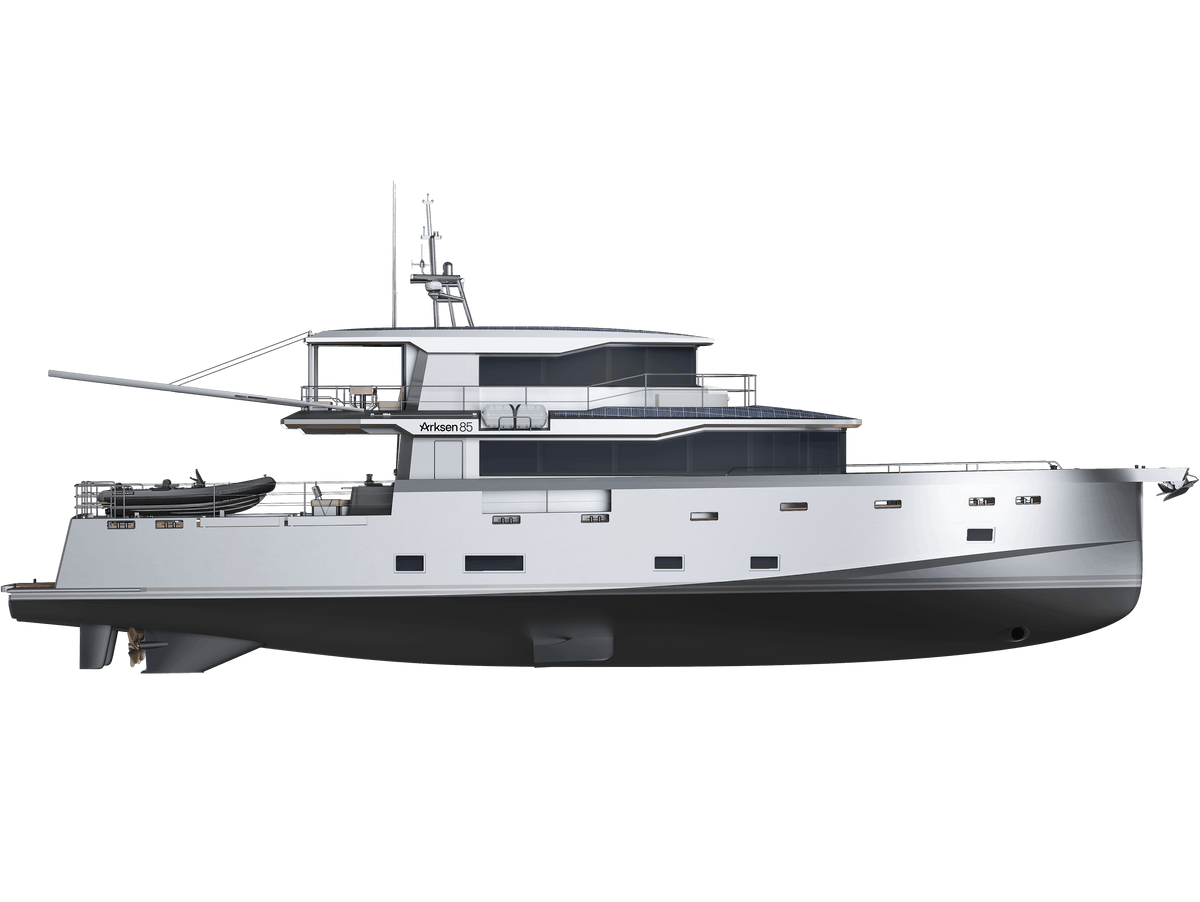

Exterior

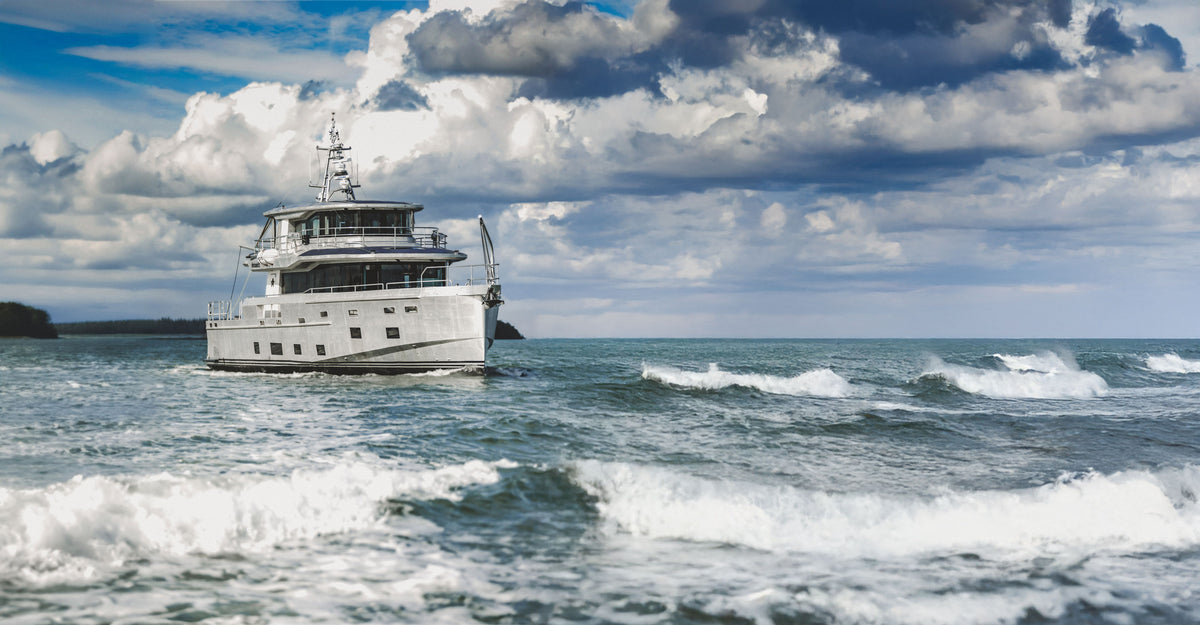

The striking exterior styling of the Arksen 85 was created by Humphreys Yacht Design. Finished in bare aluminium as standard, the hull and superstructure can optionally be painted or wrapped to suit personal requirements.
The selection of a super efficient Modeshift® hullform by Humphreys Yacht Design coupled with complex curvature on the hull has resulted in lower resistance and lower power requirement at long distance cruising speeds. This delivers optimum efficiency while also providing excellent seakeeping to maintain stability.
Naval Architect & Exterior Design
Decking
All deck areas are fitted with a nitrile rubber non-slip deck covering. Covering will provide sufficient grip underfoot, in a wide range of conditions, whilst being comfortable to sit or kneel on, or to walk on with bare feet. Optionally, various decking alternatives are available, such as Tesumo; a more sustainable real-wood alternative to Teak, and Esthec ,a synthetic decking material, available in a wide varierty of colours and patterns.
Coatings
The hull below waterline is primed and antifouled with Intersleek. Propellers and shafts exposed below waterline are coated with Propspeed. The hull above waterline and the superstructure are bare sanded aluminium, with visible welds. This gives a robust, purposeful look with minimal maintenance requirement.
Optionally, some of the welding can be sanded-flush, for a more consistent finish. A variety of other optional finishes are also available, such as clearcoat, painted, faired & painted and vinyl wrapped.
Deck Furniture

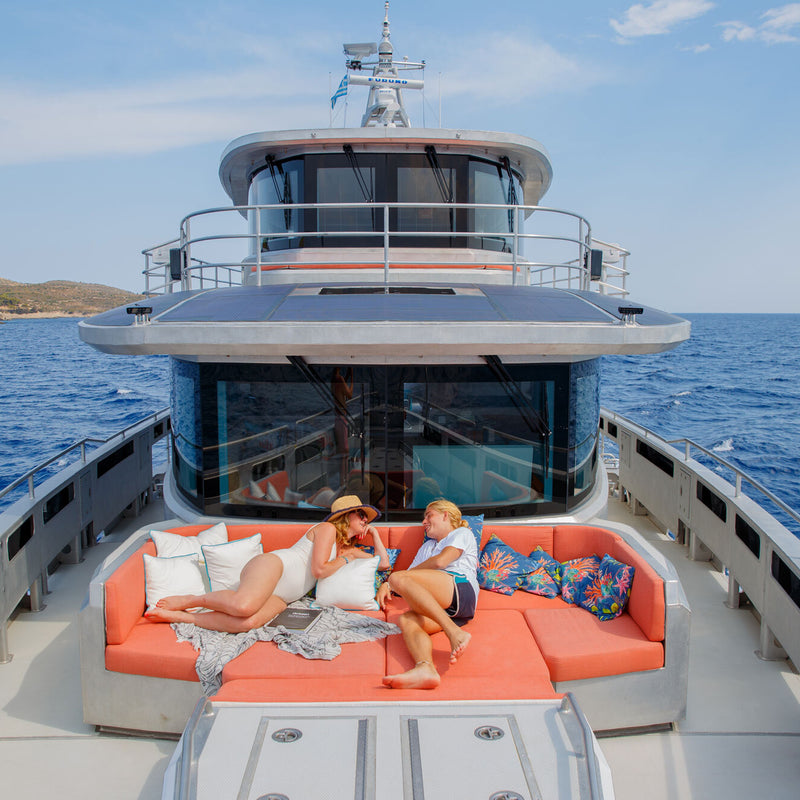

Fixed seating is fitted on the foredeck. Fixed seating is also fitted on the bridge deck Portuguese bridge, for two people to sit in comfort with excellent forward views. A fixed table with seating is fitted to starboard on the aft deck in a protected position.
Upholstered cushions in hard wearing, UV resistant fabric are provided for the external seating around the front of the saloon and flybridge, as well as the aft deck seating. Exterior seating can be customised, with options available for rise & fall table/sunpads,
Awnings & Covers
Options are available for sun awnings and weatherproof awnings are provided for the foredeck and aft deck. Covers can be provided for exterior furniture, deck equipment and tenders if requested.
Interior Design
In an industry often marked by uniformity, the Arksen 85 offers refreshing take with enriching spaces fitted out to high specifications of interior design.
Attention has been paid to delivering luxurious five-star living accommodation, with the scope to create zonal areas that offer a uniquely different ambiance in each location.
Interior Designer
Berths / cabins
14 berths max. in up to 6 cabins

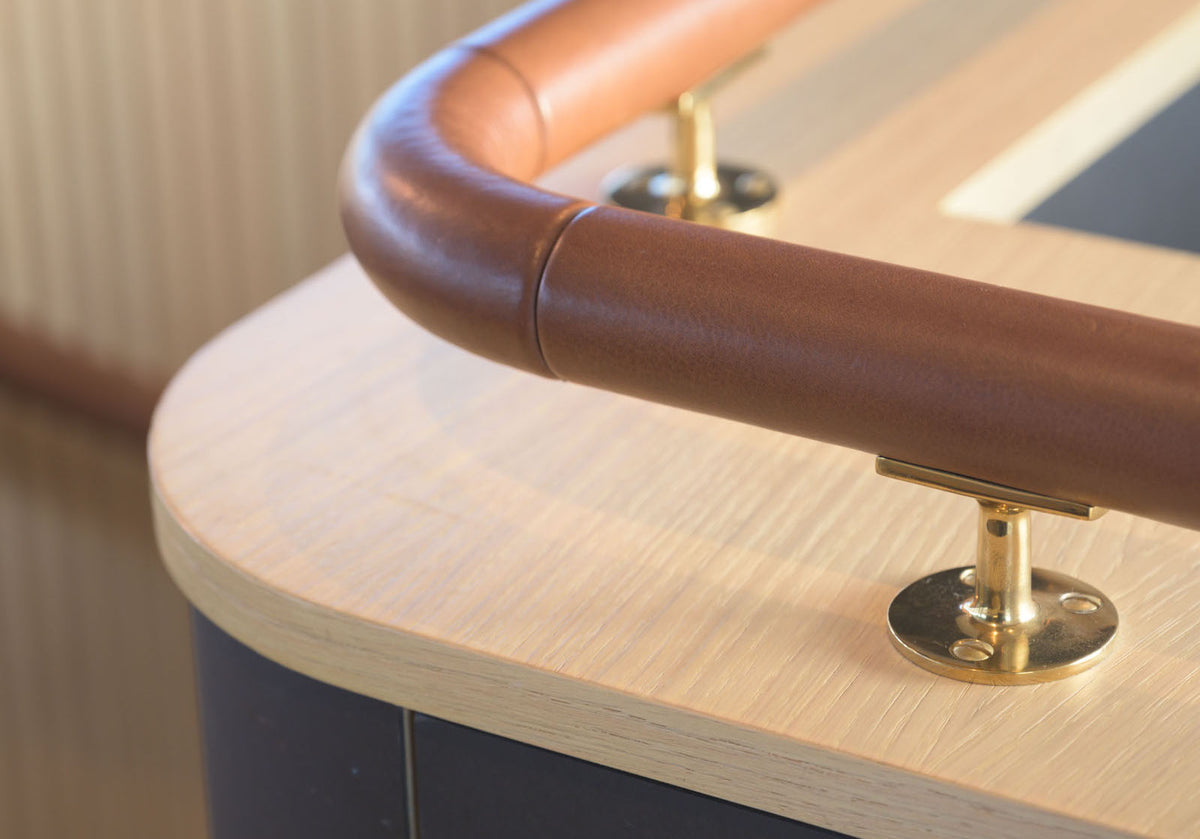

All aspects of interior take into consideration safety at sea and the ease of maintenance and cleaning. All fixtures and fittings are of an attractive yet durable standard, suitable for a marine environment.
Insulation
The vessel hull and superstructure are thermally insulated in all accommodation areas to a high standard, appropriate for operation in all likely climates. The engine room and battery room are insulated with structural fire protection to A60 standard. Additional acoustic insulation is used around the machinery space, between decks and at cabin boundaries to minimise noise transmission.
